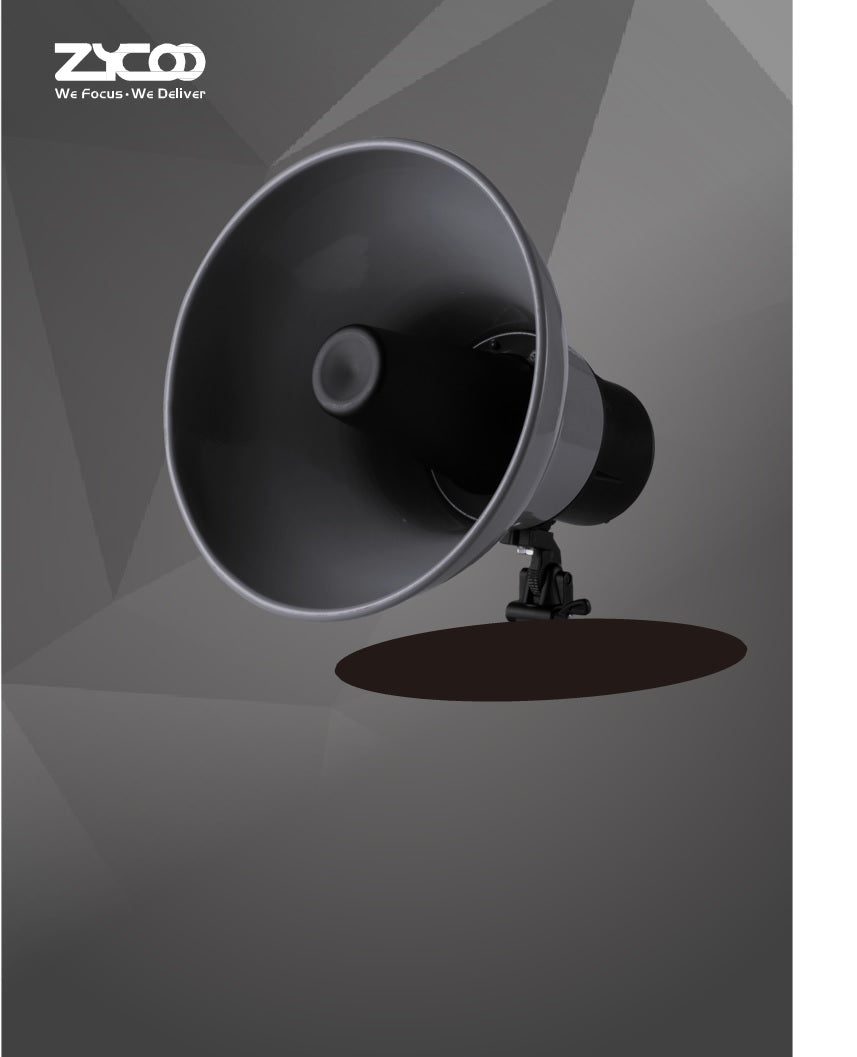

Description A p p l i c a b l e S c e n a r i o s Schools Industrial Facilities Plazas Train/Bus Stations Warehouses Playgrounds Audio Network Manufacture Stadiums Sports Parks Scenic Areas Warehouses Facilities Stadiums Built-in 30W amplifier, 400Hz to 8KHz frequency range and 117dB max sound pressure level, the audibility and intelligibility of voice paging are guaranteed even in noisy and large With IP65 protection rating and well thermal SH30 is suitable for outdoor installation and operations, even in extreme outdoor environments. ZYCOO IP Audio Center auto provisioning support, large-scale installations (local or remote) will be extremely easy and time-saving. Built-in SIP support, can be integrated with ZYCOO IP Audio Center or third-party SIP server, SIP paging using wideband G.722 codec which provides crystal clear HD Music playback through ZYCOO IP Audio Center using streamed HD MP3 audio files supported for superior quality of background music. Standard PoE (IEEE 802.3at) support, simple and easy installation with a single network cable. External power supply can be used if Speaker SH30 supports three lines SIP accounts, in which users may register the endpoint in more than one system for achieving different functionality Speaker component: 2″midrange driver unit Sensitivity: 105dB/1m/1W Max sound pressure level: 117dB Amplifier: Built-in 30W Class D Amplifier Rated power: DC: 8Ω 30W or PoE: 8Ω 18W Frequency range: 400Hz – 8KHz Coverage Pattern: 50°H 50°V, effective distance 70m Acoustics: Mono Audio codecs: G.722, G.711 A-law, G.711 U-law, Opus Audio streaming: MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo Interface: RJ45 10BASE-T/100BASE-TX PoE Protocols: SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH Administration Configuration: Web interface or auto provisioning server. Provisioning method: MQTT IoT Protocol Mechanical Properties Memory: 128MB RAM, 256MB Flash Power input: PoE IEEE802.3at/DC24V2A Casing: Surface-treated 1060 aluminium IP Rating: IP65 Color: Grey Weight: 2.68KG (5.9lb) Dimension: Ø276.07 x 276.6 mm (10.87 x 10.89 in) Mounting method: Wall/pole mounted Key: Press and hold for 3 seconds to announce IP address; Press and hold for 10 seconds to reset device to factory defaults. Environmental Installation environment: Outdoor Operating temperature: -40℃ – 70℃ (-40℉ – 158℉) Storage temperature: -40℃ – 70℃ (-40℉ – 158℉) Humidity: 10% – 95% RH Non-condensing Approvals Approvals: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014 A11:2017, FCC Part 15B Class A
