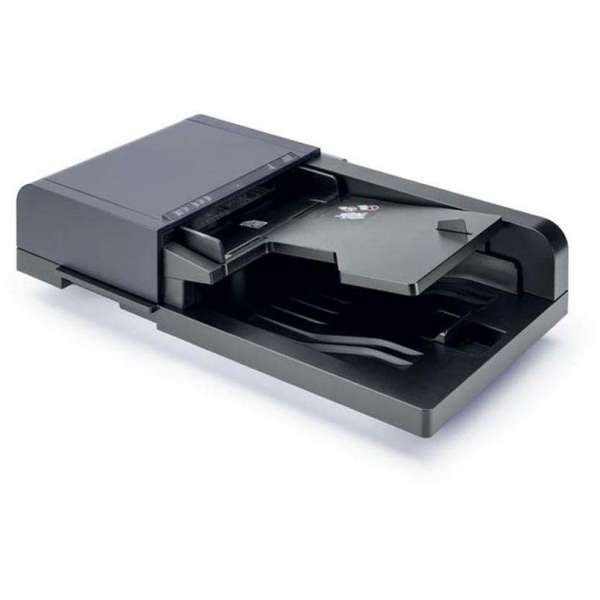

KYOCERA DOCUMENT PROCESSOR DP-7150 ADF

General Specifications Model: DP-7150 Type: Reversing Automatic Document Feeder (RADF) Function: Automatically feeds multiple document sheets for copying, scanning, and faxing Feed Method: Face-up loading, face-down output Compatible Devices: Selected KYOCERA A3 multifunction devices in the TASKalfa series Document Handling Capabilities Document Capacity: 140 sheets (based on 80 g/m² paper) Original Size Range: Width: 105 mm to 297 mm (4.13″ to 11.69″) Length: 148 mm to 432 mm (5.83″ to 17.0″) Paper Size Support: A6 to A3, Statement to Ledger (11″ x 17″) Paper Weight Range: Simplex (one-sided) scanning: 35 to 160 g/m² Duplex (two-sided) scanning: 50 to 120 g/m² Mixed Original Detection: Automatically detects and processes mixed paper sizes Skew Correction: Automatic digital skew correction capability Performance Specifications Scan Speed (300 dpi, A4/Letter): Simplex B&W: Up to 80 images per minute Simplex Color: Up to 80 images per minute Duplex B&W: Up to 48 images per minute Duplex Color: Up to 48 images per minute Scanning Method: Contact Image Sensor (CIS) Scanning Resolution: 600 x 600 dpi (optical) Duplex Scanning Technology: Reversing (documents make a U-turn for second side scanning) First Copy Time Impact: Optimized to minimize impact on first copy out time Physical Specifications Dimensions (W × D × H): Approximately 593 × 532 × 146 mm (23.3″ × 20.9″ × 5.7″) Weight: Approximately 8.4 kg (18.5 lbs) Installation: Top-mounting on compatible MFP devices Power Source: Powered by the MFP (no separate power connection required) Reliability Specifications Daily Duty Cycle: Recommended up to 5,000 scans per day MTBF (Mean Time Between Failures): 250,000 pages Feed Roller Life: Approximately 200,000 pages Maintenance Cycle: Periodic cleaning recommended every 50,000 scans Special Features Blank Page Detection: Automatically detects and skips blank pages Original Detection: Sensors to detect paper presence and jams Document Misfeed Detection: Multiple sensors for reliable misfeed detection Job Build Function: Supports scanning of larger batches than the feeder capacity Long Paper Support: Extended scanning mode for longer documents (up to 1,900 mm) Multi-feed Detection: Ultrasonic sensor to detect when multiple pages are fed simultaneously Environmental Specifications Operating Environment: Temperature: 10°C to 32.5°C (50°F to 90.5°F) Humidity: 15% to 80% RH (non-condensing) Noise Level: Contributes less than 3 dB to the main unit’s operational noise Warranty Coverage: Covered under the warranty of the KYOCERA MFP to which it is attached Service Options: Available within KYOCERA maintenance service agreements Category: Kyocera Tonners Tag: KYOCERA DOCUMENT PROCESSOR
