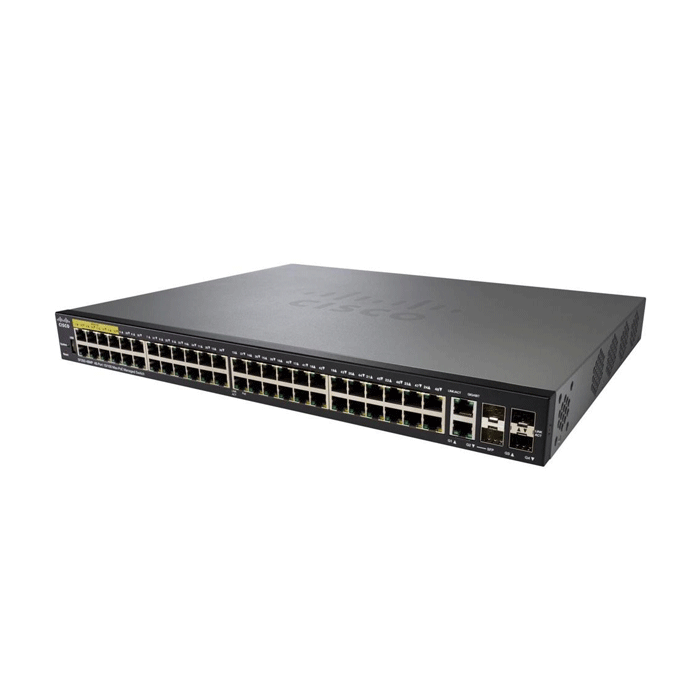

Cisco SG350-52P-K9-EU 52-Port Gigabit PoE Managed Switch

Description SG350-52P Specification SG350-52P Specification Feature Description Spanning Tree Protocol (STP) Standard 802.1d Spanning Tree support Fast convergence using 802.1w or Rapid Spanning Tree (RSTP), enabled by default 8 instances are supported Multiple Spanning Tree instances using 802.1s (MSTP) Port Grouping Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP) Up to 8 groups Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation Virtual Local Area Network (VLAN) Support for up to 4096 VLANs simultaneously Port-based and 802.1Q tag-based VLANs Media Access Control (MAC)-based VLAN Management VLAN Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN Unauthenticated VLAN Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication Customer Premises Equipment (CPE) VLAN Voice VLAN Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Auto voice capabilities deliver networkwide zero-touch deployment of voice endpoints and call control devices. Multicast TV VLAN Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs, also known as Multicast VLAN Registration(MVR) Q-in-Q VLAN VLANs transparently cross a service provider network while isolating traffic among customers Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) Protocols for automatically propagating and configuring VLANs in a bridged domain Unidirectional Link Detection (UDLD) UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and blackholing of traffic in switched networks Dynamic Host Configuration Protocol (DHCP) Relay at Layer 2 Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82 Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1K multicast groups (source-specific multicasting is also supported) IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router Head-of-Line (HOL) Blocking HOL blocking prevention Jumbo Frame Up to 9K (9216) bytes IPv4 routing Wirespeed routing of IPv4 packets Up to 512 static routes and up to 128 IP interfaces Classless Interdomain Routing (CIDR) Support for CIDR Layer 3 Interface Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface DHCP relay at Layer 3 Relay of DHCP traffic across IP domains User Datagram Protocol (UDP) relay Relay of broadcast information across Layer 3 domains for application discovery or relaying of bootP/DHCP packets DHCP Server Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options Dimensions (W x H x D) SG350-10, SG350-10P, SG350-10MP: 11 x 1.45 x 6.7 in. (279.4 x 44.45 x 170 mm) SG355-10P, SG350-28: 17.3 x 1.45 x 10.1 in. (440 x 44.45 x 202 mm) SF350-48, SG350-28P, SG350-28MP: 17.3 x 1.45 x 10.1 in. (440 x 44.45 x 257 mm) SF350-48P, SF350-48MP: 17.3 x 1.45 x 13.78 in. (440 x 44.45 x 350 mm) Power 100-240V 50-60 Hz, internal, universal: SF350-48P, SF350-48MP, SG350-28MP, SG350-28, SG350-28P, SG350-28MP 100-240V 50-60 Hz, 0.7A, external: SG350-10 100-240V 50-60 Hz, 1.5A, external: SG350-10P 100-240V 50-60 Hz, internal, universal: SG355-10P 100-240V 50-60 Hz, 2.0A, external: SG350-10MP Certification UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A Operating Temperature SG350-10, SG350-10P, SG355-10P, SG350-10MP, SG350-28, SG350-28P, SG350-28MP 32° to 104°F (0° to 40°C) SG350-10MP, SG350-10P, SG350-28P 32° to 113°F (0° to 45°C) SF350-48P, SF350-48MP, SG350-28MP 32° to 122°F (0° to 50°C) Storage Temperature –4° to 158°F (–20° to 70°C) Operating Humidity 10% to 90%, relative, noncondensing Storage Humidity 10% to 90%, relative, noncondensing   Advanced features and performance 350 Series Switches are next-generation managed switches that offer excellent performance, rich features, and ease of use. With support for Layer 2 and 3 features, advanced security, routing, and energy-saving technology, they deliver a solid foundation for business applications today and in the future. Powerful capabilities In addition to advanced management, security, and quality of service (QoS), these switches deliver capabilities such as static routing, advanced threat defense, time-based access control lists and 802.1x, and many others. Easy setup and management Our intuitive, browser-based user interface is user-friendly, with simple mode and a configuration wizard for common configurations. Advanced CLI management options are available. We also offer a USB port for easier file management. Performance and reliability The 350 Series is designed and tested to deliver the high performance and reliability you would expect from Cisco switches, so you can enjoy speedy file transfers and keep vital business applications available. Energy efficiency Energy-saving features are embedded across the portfolio, including energy-detect, cable length detection, and Energy Efficient Ethernet (EEE). All these provide an eco-friendly and cost-effective solution without compromising performance.
