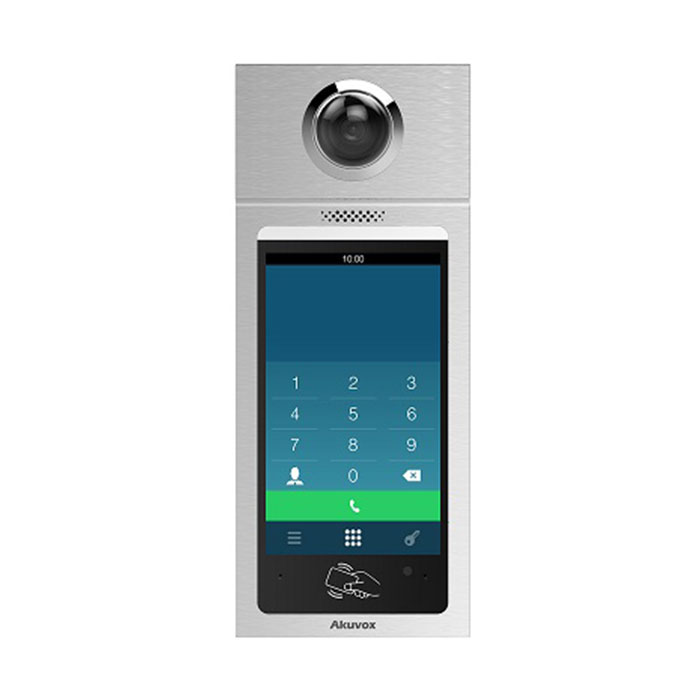

Description R29 World’s First Facial Recognition Android Doorphone Akuvox R29 is a SIP video doorphone with a 7” touch screen, which performs AI-powered offline facial recognition for door access. It is typically used in apartment buildings, high-rise office buildings and building complexes. Specification At a Glance Enables audio and visual monitoring of doors/gates which increase security on residential or commercial premises; Dual camera for anti- counterfeit, completely solve all kinds of photos and video deception on various carries; Face verification accuracy >99.9%; face comparison speed <0.5s per person; false recognition rate <0.1%; Allows both audio and video communication to an IP phone, mobile client, or softphone; Enables the ability to remotely control the door/gate; Presents information and user navigation options unique to your business; Speeds response time to visitors, delivery and service personnel that require access; Physical & Power Front panel: Aluminum RAM / ROM: 2GB / 16GB Display: 7 Inch IPS LCD Screen: 7 Inch capacitive touch screen Main Camera: 2M pixels, automatic lighting Auxiliary Camera: 1M pixels Light sensor: Support Infrared sensor: Support Wiegand port: Support RS485 port: Support RF card reader: 13.56MHz & 125kHz Relays ln/out: 3/3 Microphone: -32dB Speaker: 8Ω / 2W Bluetooth: Support Ethernet port: RJ45, 10/100Mbps adaptive 802.3at Power-over-Ethernet IP/IK Level: IP65/ IK06 Installation: Flush-mounted & Wall-mounted Flush-mounted DIM: 324x130x60mm Wall-mounted DIM: 324x130x33mm Working Humidity: 10-90% Working Temperature: -20°C – 55°C Storage Temperature: -40°C – 70°C Audio SIP v1 (RFC2543), SIP v2 (RFC3261) Narrowband audio codec: G.711a, G.711μ, G.729 Broadband audio codec: G.722 DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info Echo Cancellation Voice Activation Detection Comfort Noise Generator Video Sensor: 1/2.8″, CMOS Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p Video codec: H.264 Video resolution: up to 1920x1080p Max. image transfer rate: 1080p – 25fps Viewing angle: 105(H)/55°(V) High intensity IR LEDs for picture lighting during dark hours with internal light sensor White LEDs for QR code scanning Compatible to 3rd-party video components, Networking and Protocol Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP Door Entry Feature Android OS for any 3rd-party software or customization Relays controlled individually by DTMF tones Multi-way Unlock: Face, IC/ID Card, PIN and BLE Camera permanently operational Auto-night mode with LED illumination White balance: auto Minimum illumination: 0.1LUX Deployment & Maintenance Auto-Provisioning Web management portal Web-based packet dump Configuration backup / restore Entry log export Access table export / import Firmware upgrade System logs (include door access logs) Application Scenario Office door phone with on-site or hosted IP-PBX Remote site entry over Internet Apartment/flat intercom with door access control Business information or a welcome experience for guests
