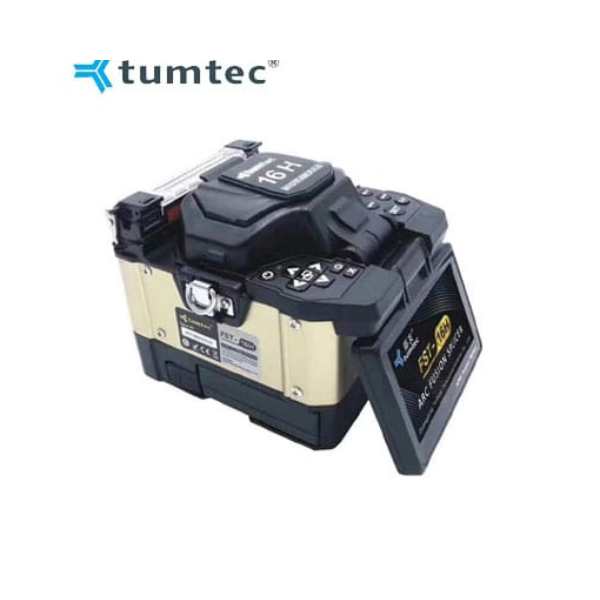

Tumtec FST-16H Fiber Optic Fusion Splicer This Tumtec FST-16H is a fiber-optic fusion splicer that has a large, high-resolution screen to display fiber alignment and splicing results in real time, which can visually monitor and confirm each splice for accuracy. It can be used in data centers, fiber to the home (FTTH), and telecom networks. Technical Specification · Model: 16H · Motor(s): 4 Motor · Number of Fiber : Single Applicable Fibers SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) · Compatible Fiber/Cable : 0.25-3.0mm/Indoor Cable · Cleaved Length Coating Diameter : 0.125-1mm/Cleave length:5-16mm · Splicing Mode: Multiple Splicing Modes · Typical Splice Loss : 0.01-0.05db · Return Loss : 60db · Lighting: 3 powerful white LED and illuminated keypads · Splicing Time : 6-8 seconds · Estimated Splice Loss: Available · Protection Sleeve Length : 20-60mm · Heating Mode: Multi Heating Modes · Heating Time: Typical Heating Time : 15s · Results Storage : 2000 records · Tension Test : 1.5-2.0N · Operating Condition Operating altitude : 0-5000m above sea level, 0-95% relative · Humiditym-10~50 max wind 15m/s · Storage Condition: 0~95% relative humidity, -40~80 · Display: 90bi-directional view,4.3 color high resolution display with touch screen · Fiber View & Magnification: X,Y,XY,X/Y:380Magnification · Power Supply: AC Input 100-240V,DC Input 12-15V · No. of Splice/Heating with Battery: 4800mAh battery capacity, typical above 200 times(splice heat) · Operating Methods: Button/Touch Screen · Automatic Calibration: Automatic ARC calibration by air pressure and temperature · Electrode Life 3500 ARCS, can be extended by using an electrode grinder · Terminal: USD 2.0/Phone Jack 140W*165L*160Hmm (including rubber Bumper) Dimension · 140W*165L*148Hmm (including rubber Bumper) · 130W*165L*138Hmm (excluding rubber Bumper) Weight · 2.0 KG (including rubber Bumper) · 1.7 KG (excluding rubber Bumper) · 0.38 KG (battery) Applications · Fiber to the Home (FTTH): Tumtec FST-16H fusion splicer is suitable for splicing in FTTH installations, ensuring high-quality and reliable fiber connections for residential networks. · Telecom Network: This splicer is commonly used in telecommunications to create stable, high-speed connections over long distances to ensure network reliability. · Data Center: In data centers, the FST-16H enables efficient splicing of single-mode and multi-mode fibers as well as ensuring high-speed data transmission between servers and switches.
