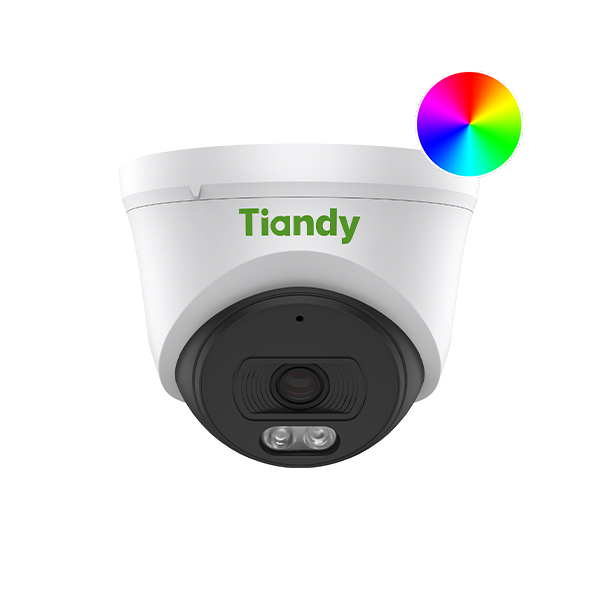

Tiandy 4MP Fixed Turret IP Camera with Audio – Color Maker TC-C34XN I3W/E/Y/2.8mm/V4.2 Camera Tiandy 4MP Fixed Turret IP Camera Image Sensor 1/2.9″CMOS Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR Shutter Time 1s~1/100000s Day&Night IR-cut filter with auto switch (ICR) WDR 120dB S/N >40dB Angle Adjustment 0~340°(P); 0~75°(T); 0~360°(R) Lens Lens Type Fixed focal lens Focal Length 2.8mm Lens Mount M12 Aperture Range F1.6 Field of View 100.1°(H); 54.3°(V); 113.9°(D) DORI Distance Detect:56.0m Observe:22.2m Recognize:11.2m Identify:5.6m Illuminator IR LEDs 2 IR Distance 30m Wavelength 850nm White LEDs 2 Whitelight Distance 15m Compression Standard Video Compression S 265/H.265/H.264B/H.264M/H.264H Video Bit Rate 32k~6Mbps Audio Compression G.711A/G.711U/ADPCM_D Audio Sampling Rate 8kHz/32kHz/48kHz Image Max. Resolution 2688×1520@25fps Main Stream PAL:25fps(2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC:24fps(2688×1520, 2560×1440), 30fps(2304×1296, 1920×1080, 1280×720) Sub Stream PAL:25fps(704×576, 704×288, 352×288, 640×360) NTSC:30fps(704×480, 704×240, 352×240, 640×360) BLC Yes HLC Yes AGC Yes 3D DNR Yes White Balance Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance ROI 8 rectangular static areas OSD Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48/64*64 Privacy Mask 4 black static areas Defog Yes Feature Alarm Trigger Motion Detection; Mask Alarm; IP Address Conflict Linkage Method trigger warmlight; trigger capture Video Analytics Tripwire; Perimeter Rules of behavior analyse in 1 scene 2 Network Protocols HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH; Unicast; RTSP; FTP System Compatibility P2P(Mutually exclusive with Profile G); ONVIF Profile S/T; CGI; Milestone Remote Connection ≤2 Client Easy7 Smart Client Moblie Client EasyLive Plus Interface Communication Interface 1*RJ-45,10/100 Mbps self-adaptive Ethernet port General Web Client Language 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian Operating Temperature -30℃~60℃(No turning on the light) Operating Humidity Humidity 95% or less (no condensation) Storage Temperature -30℃~60℃ Storage Humidity Humidity 95% or less (no condensation) Power Supply DC12V±25%,MAX 6.5W; POE 802.3af,MAX 7W Protection Surge4000V; ESD6000V Boundary Dimensions 117(L)117(W)96(H)mm Package Dimensions 140(L)140(W)120(H)mm GrossWeight 0.35Kg
