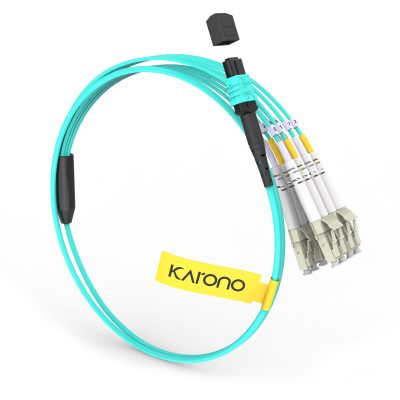

3.3ft MPO/MTP to 8 x LC (4 Duplex), Type-B, 10GB/40G OM3 Multi-mode Fan-out Fiber Optic Cable – Aqua (1M)

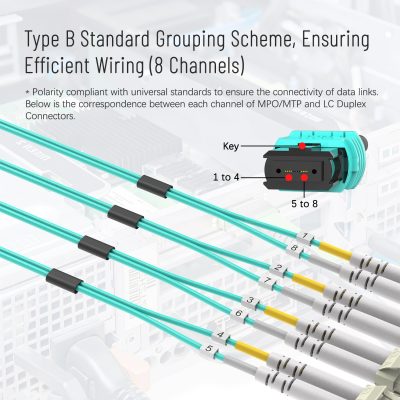

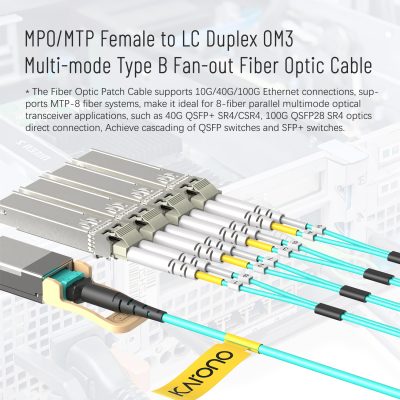

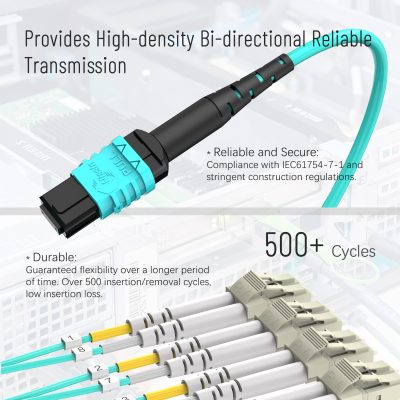

Overview:This MPO breakout / fan-out fiber cable is ready for deployment in any multimode 50/125 MTP/MPO network. OM3 is fully backward-compatible with existing OM2 or OM1 systems. This multimode, MPO fiber cable is comprised of 8 fibers or 4 duplex channels within each connector (the center 4 fibers are not used). These high density cables are perfect when you have limited space, making it possible to run a single cable that automatically terminates 8 fibers in one easy plug-in. The fan-out side has 8 LC connectors that are numbered according to the fiber position in the MPO Connector and duplexed together. The push-pull release mechanism for the MPO connector is easy to engage and disengage, its latch design also prevents the plug from snagging when jumper cables are being routed.Product Specifications Connector AMPO/MTPConnector B8 x LCFiber ModeOM3 50/125μmWavelength850/1300nm40/100G Ethernet Distance100m at 850nm10G Ethernet Distance300m at 850nmMulti-mode ClassOM3Minimum Bend Radius7.5mmTrunk Diameter3.0mm-10.0mmBreakout Leg2.0/0.9mmMTP Connector IL0.35dBLC Connector IL≤0.2dBMTP Connector RL≥20dBLC Connector RL≥30dBSpecifications:MPO (female) to 8xLC MPO Female, without PIN MMF(50/125um), OM3 Insertion loss : MPO <0.7 dB; LC <0.3dB Return loss : MPO >35dB; LC>30dB Insert- pull test : 500times <0.5 dB Operation temperature : -40℃ ～ 80℃
