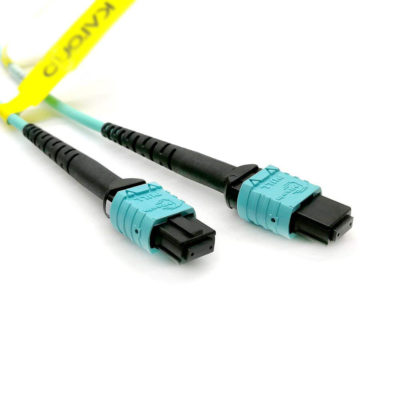

Description:16 Fibers MTP trunk cable is designed for 400G QSFP-DD SR8 optics direct connection and supporting 400G transmission for Hyperscale Data Center. With US Conec MTP connectors and Clearcurve fiber, it is optimized for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Please note: The US Conec MTP® connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.Product SpecificationsConnector AMTP Female (pinless)Connector BMTP Female (pinless)Fiber Mode 16 fibers OM3 50/125 μmWavelength850/1300 nm40/100G Ethernet Distance100 m at 850 nm10G Ethernet Distance300 m at 850 nmMulti Mode ClassOM3RoHS Compliancy StatusCompliantPolish TypeAPC to APCMinimum Bend Radius7.5 mmInsertion Loss0.35 dB Max. (0.15 dB Typ.)Return Loss≥ 20 dBAttenuation at 850 nm≤ 2.3 dB/kmAttenuation at 1300 nm≤ 0.6 dB/kmJacket OD3.0 mmCable JacketLSZHInstallation Tensile Load100 NLong-Term Tensile Load50 NStorage Temperature-40°C to 85°COperating Temperature-10°C to 70°CCompatible for :OSFP/QSFP-DD to OSFP/QSFP-DD Local 400G-SR8 to 400G-SR8Drawing:
