PoE Extender 4 Port, 1 PoE in 3 PoE Out Gigabit Ethernet Repeater, 10/100/1000Mbps, IEEE802.3 af/at PoE Powered, Din-Rail & Wall Mount Passthrough POE Amplifier/Booster, Plug and Play

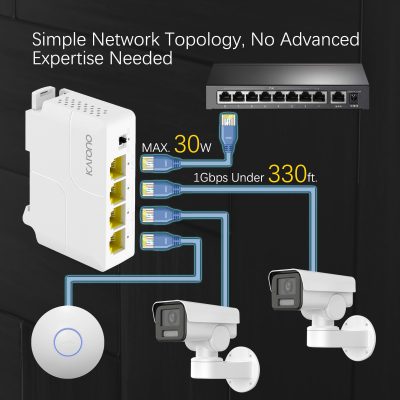

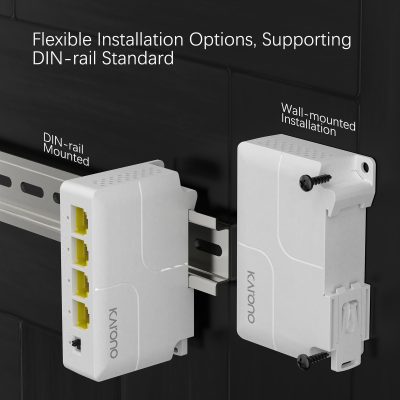

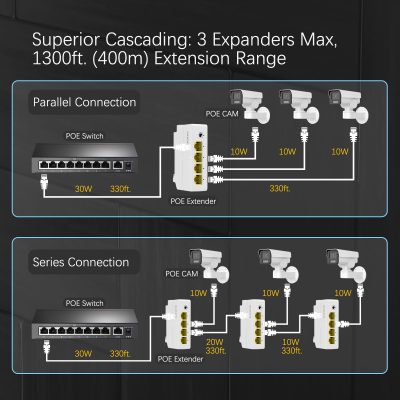

【1 in 3 out PoE Extender】Include 1x Gigabit PoE Input and 3x Gigabit PoE Output ports, delivering 1000Mbps data throughput and PoE (IEEE802.3af/at) compatibility. Powered by PoE network, no AC power supply required;【IEEE 802.3 af/at】 Support standard PoE, Input Max 30W, Output Max 30W, Average 10W per port. PoE Voltage 44-57 Vdc. PoE pin: Input: 1/2 ( ), 3/6 (-), 4/5( ), 7/8(-); Output: 1/2 ( ), 3/6 (-);【Plug and Play】 Truly plug-and-play setup—no software or complex settings required. Simply connect to any PoE active switch and daisy-chain devices. Extends the range of poe and ethernet an additional 100 meters;【Dual Mode Option】When the switch is set to ​OFF, the device operates in ​default mode, supporting a transmission rate of ​1 Gbps​ with a ​100-meter​ transmission distance. When the switch is set to ​ON, the device enters ​VLAN mode, extending the transmission distance to ​150 meters, but the transmission rate reduces to ​100 Mbps.【Easy Install】 Engineered with dual DIN-rail/wall-mount slots and space-saving compact size, this extender effortlessly adapts to control cabinets, ceiling voids, or narrow conduits;【Widely Used】 Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost. Ideal for lofts, warehouses, hotels, smart communities, and more;
