Outdoor Waterproof PoE Extender 5 Port, 1 PoE in 4 PoE Out 90W Gigabit Ethernet Repeater, IEEE802.3af/ at/bt Powered, 1000Mbps, Din-Rail & Wall Mount POE Amplifier/Booster, Plug and Play

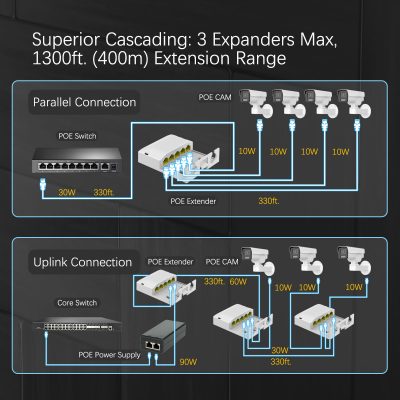

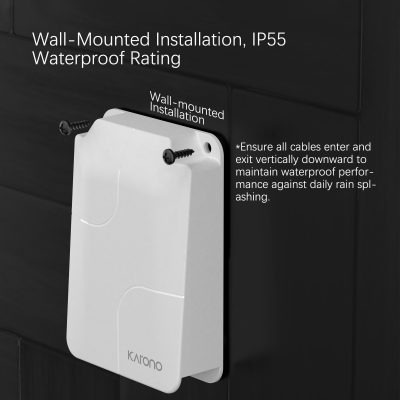

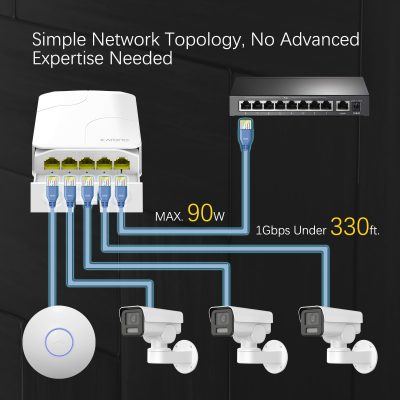

【Outdoor Waterproof PoE Extender】Include 1x gigabit (PoE/90w) power input port, 1 gigabit (PoE/60w) output port and 3 gigabit (PoE/30w) power output ports. The total maximum power of the extender is 90W. Powered by PoE network, no AC power supply required;【IEEE 802.3 af/at/bt】All ports support this standard PoE, Input Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 ( ), 3/6 (-), 4/5( ), 7/8(-); Port 1-3 Output: 1/2 ( ), 3/6 (-). Port 4 Output: 1/2 ( ), 3/6 (-), 4/5( ), 7/8(-);【Plug and Play】 Truly plug-and-play setup—no software or complex settings required. Simply connect to any PoE active switch and daisy-chain devices. Extends the range of poe and ethernet an additional 100 meters;【Easy Install】 Engineered with dual DIN-rail/wall-mount slots and space-saving compact size, this extender effortlessly adapts to control cabinets, ceiling voids, or narrow conduits;【Widely Used】 Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost. Ideal for lofts, warehouses, hotels, smart communities, and more;
