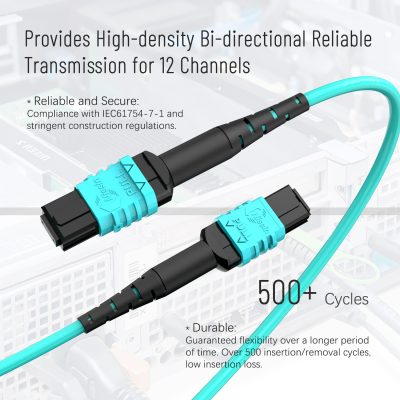

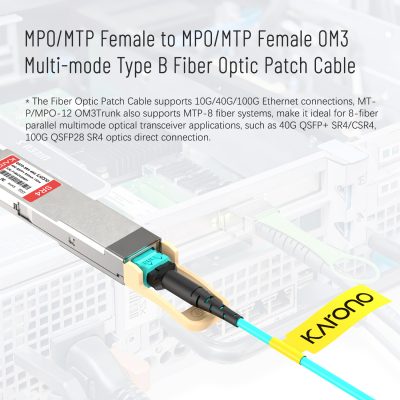

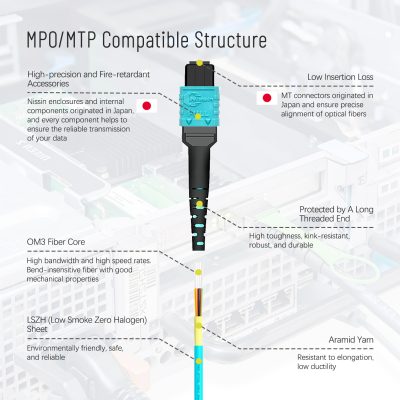

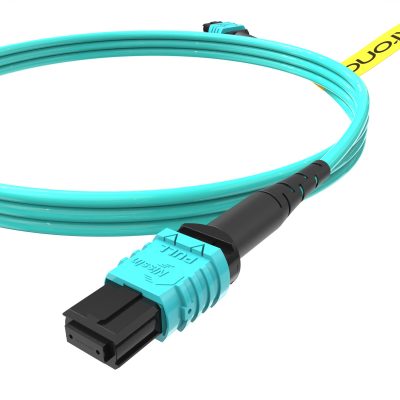

Description:multi-mode MPO products are multifiber connectors used in high-density backplane and Printed Circuit Board(PCB) applications in data and telecommunications system. The MPO stander is fully compatible with MTP stander, offers up to 12 times the density of standard connectors, such as LC/SC/FC etc. MPO/MTP patch cord providing sinificant space and cost savings. MPO patchcord utilize precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MPO can be mass terminated in combination of 4, 8, 12, 16, 24 or 32 fiber ribbon cables.Product SpecificationsConnector AMPO Female (pinless)Connector BMPO Female (pinless)Fiber Mode12 fibers OM3 50/125 μmWavelength850/1300 nm40/100G Ethernet Distance100 m at 850 nm10G Ethernet Distance300 m at 850 nmMulti Mode ClassOM3RoHS Compliancy StatusCompliantPolish TypeUPC to UPCMinimum Bend Radius7.5 mmInsertion Loss0.35 dB Max. (0.15 dB Typ.)Return Loss≥ 20 dBAttenuation at 850 nm≤ 2.3 dB/kmAttenuation at 1300 nm≤ 0.6 dB/kmJacket OD3.0 mmCable JacketLSZHInstallation Tensile Load100 NLong-Term Tensile Load50 NStorage Temperature-40°C to 85°COperating Temperature-10°C to 70°CCompatible for :Cisco QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40F-CSR4 Extreme 40GB-ESR4-QSFP Juniper QFX-QSFP-40G-SR4 and QFX-QSFP-40G-ESR4. Brocade 40G-QSFP-SR4. Arista QSFP-40G-SR4 and QSFP-40G-XSR4. Hawei QSFP-40G-ISR4 and QSFP-40G-eSR4. H3C JG325A,JG325B and JG709A
