Circular Polarised, Bi-Directional Mine/Tunnel Wi-Fi Antenna

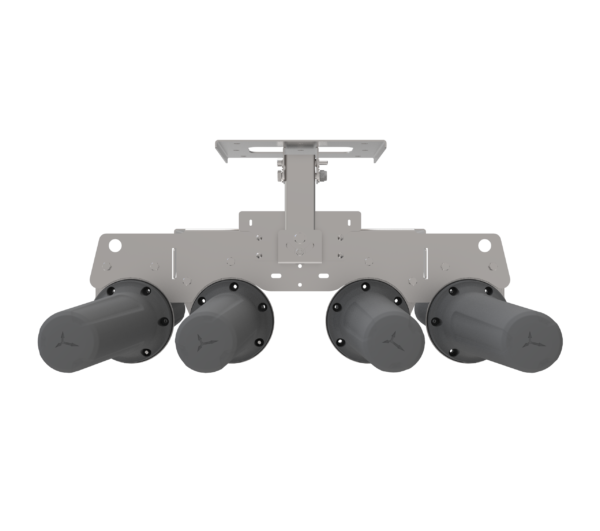

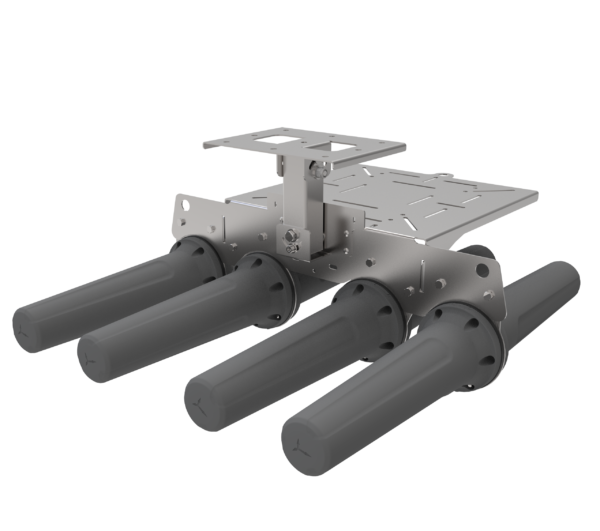

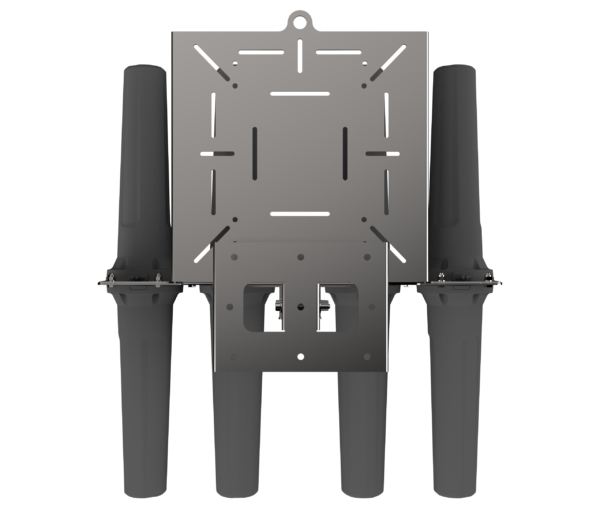

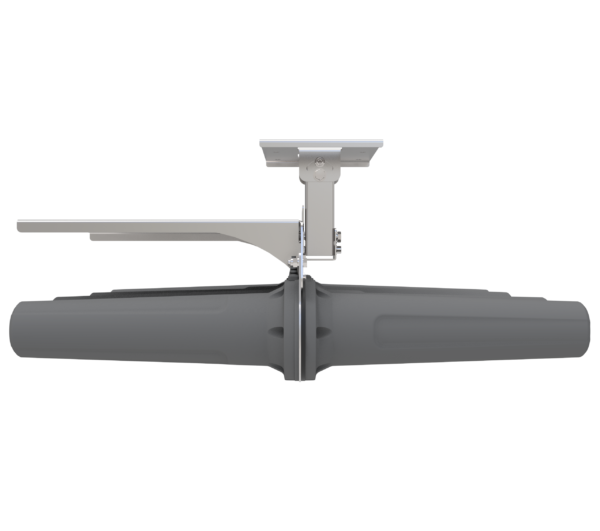

Description The HELI-42 forms part of the Mini-HELI antenna series. These antennas are only mini in size relative to their bigger brothers, the HELI-3, HELI-4 & HELI-8, but offer medium to high gain, which makes these antennas ideal for mining tunnels where IoT/M2M connectivity is deployed and can also be used for coverage into the stopes. The HELI-42 is a dual-band 2.4 GHz and 5 GHz Wi-Fi antenna, radiating in both directions (i.e., bi-directional). This makes them ideal for the coverage of both Wi-Fi bands in mining and other type of tunnels. These antennas are typically used for the deployment of IoT within the tunnel to provide telemetry and mining automation. These antennas are available in both Left-hand Circular (LHC) & Right-Hand Circular (RHC) polarised antenna elements to provide optimal decorrelation within a 4×4 MIMO or even 8×8 MIMO deployment when using the BRKT-46, resulting in optimum performance. The antenna decorrelation is due to the polarisation difference and spatial diversity, between the two antenna elements, which enhances MIMO performance and RF reliability within a mining tunnel. The dual-band Wi-Fi connection propagates around tunnel bends in a Non-Line of Sight scenario and provides immunity to many Wi-Fi signal disrupting objects such as trains and drilling machinery which appear to obscure the tunnel. Key Features Circular Polarised HELI antenna provides enhanced signal propagation ad connection stability within a tunnel Left Hand Circular (LHC) & Right-Hand Circular (RHC) polarised Uni-directional – radiates in one direction in a tunnel Ruggedized, water and dust ingress protected (IP 65) Ideal for Mining & Tunnel M2M and IoT deployment Technical Spec Sheet
