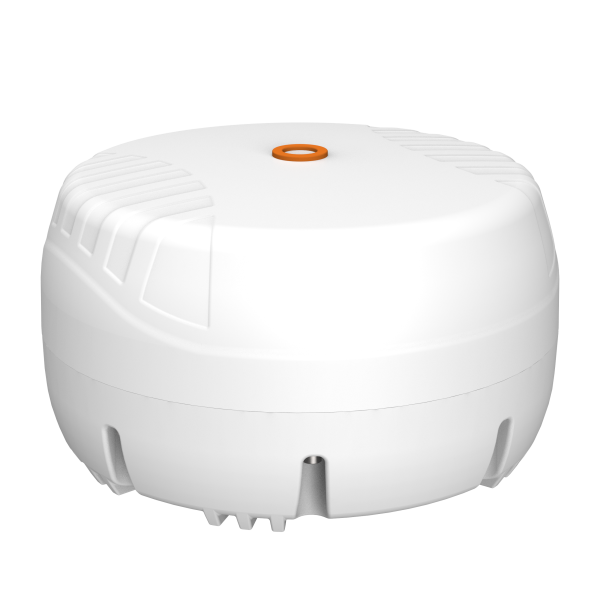

Description RFShop proudly introduces the Poynting SWIRL antenna solution, designed for both maritime and mobility applications. The SWIRL-8 features a high-performance antenna array that ensures seamless connectivity across multiple networks, making it a versatile choice for demanding environments. Advanced Multi-Frequency Coverage: Equipped with 8 cross-polarised cellular antennas covering 617 to 6000 MHz with a peak gain of 6 dBi. Dual-Band Wi-Fi Support: Includes 4 dual-band Wi-Fi antennas supporting 2.4 GHz and 5 to 7.2 GHz for enhanced wireless performance. High-Precision GNSS Antenna: Features a dual-band GNSS system for L1 and L5 constellations, ensuring accurate positioning. Rugged & Weatherproof Design: Compact with dimensions of 382 mm in diameter and 127 mm in height, featuring an IP69K rating for durability in harsh conditions. Versatile Applications: Primarily designed for maritime connectivity but also suitable for mobility applications, ensuring robust network coverage. Transforming SWIRL-8 into a CPE Solution The SWIRL-8 can be upgraded into a Customer Premises Equipment (CPE) device by incorporating the SWIRL-BASE. This cast aluminium base is specifically designed to house 5G routers, available in sizes of 231 x 193 x 50 mm or 293.5 x 148.5 x 50 mm. Installing the router within the base reduces coaxial cable runs, improving performance by minimising signal loss. Additional Benefits Simplified Deployment: The SWIRL-8-02 provides an all-in-one solution, simplifying installation by housing both the antenna array and 5G router(s) in a single unit, reducing setup complexity. Optimised Performance: Housing the router within the same enclosure as the antennas minimises cable loss and improves signal integrity, resulting in better performance, especially in challenging environments where maintaining a stable connection is crucial. Router Housing Compatibility: The SWIRL-BASE can accommodate routers of 231 x 193 x 50 mm (9.094 x 7.60 x 1.97 inches) or 293.5 x 148.5 x 50 mm (11.56 x 5.85 x 1.97 inches). Compact Design: The SWIRL-8-02 features a streamlined form factor with dimensions of 382 mm (15.039 inches) in diameter and 224 mm (8.82 inches) in height. Experience the future of connectivity with POYNTING’s SWIRL antenna solution, engineered for seamless integration and superior performance in the most demanding environments. Ideal Applications Reliable connectivity for ships, boats, and other marine vessels. Enhanced network performance for vehicles and other mobile platforms. Stable connections for remote sites and infrastructure monitoring. Robust communication systems for emergency response and public safety services. Efficient data transmission for various Internet of Things (IoT) applications in challenging environments. More Information and DATASHEET
