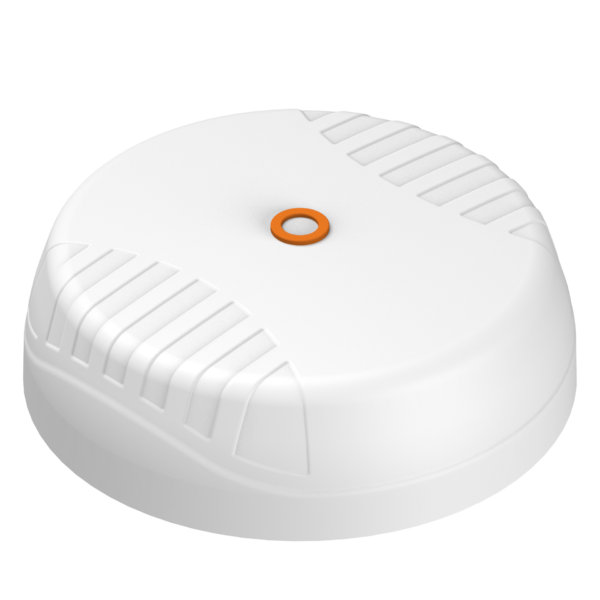

SWIRL-8 X-Polarised, Omni-Directional 5G/LTE, Multi MIMO Antenna Array

Description The SWIRL-8-01 is the antenna-only version of the SWIRL that integrates: – Eight cross-polarized cellular antennas: covering a wide range of LTE and 5G frequency bands from 617 to 6000 MHz – Four dual-band Wi-Fi antennas: Supporting 2.4 GHz and 5 to 7.2 GHz bands for optimal wireless coverage – One dual-band GNSS antenna: Covering GPS L1 and L5 bands for fast and precise positioning. High performance, omni-directional Maritime & Mobility Antenna Up to 8 x 8 MIMO capability for improved performance Covers contemporary 5G/LTE band from 617 to 6000 MHz Innovative heat sink design for improved temperature regulation UV and saltwater protected for marine and coastal applications IP69K weather/dust resistant enclosure Additional Benefits Router Agnostic: SWIRL-8-01 is a great choice for users who prefer the flexibility to use any router. The antenna system is compatible with most commercially available routers, offering adaptability and future-proofing for evolving networking needs. This allows users to easily swap routers or upgrade them without replacing the antenna. Custom Deployment: In environments where the user already has an established setup or specific router preferences, the antenna-only configuration offers seamless integration. It allows users to take full advantage of their preferred networking hardware without being constrained to any one system Compact Design: SWIRL-8-01 features a compact design with dimensions of 382 mm in diameter and 127 mm in height. Technical Spec Sheet
