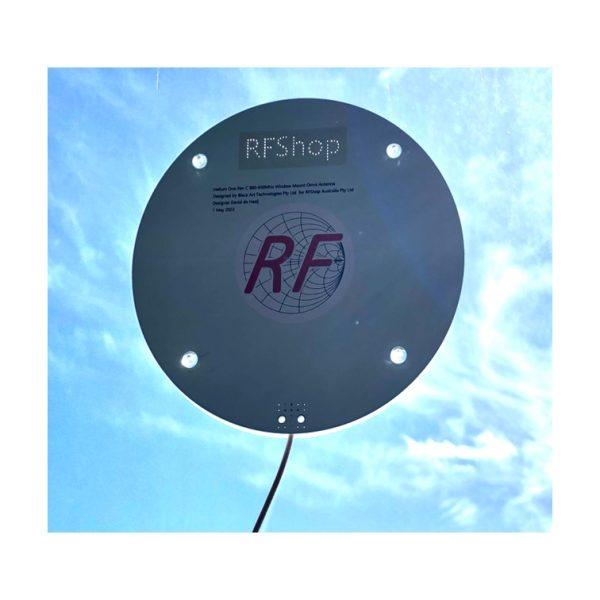

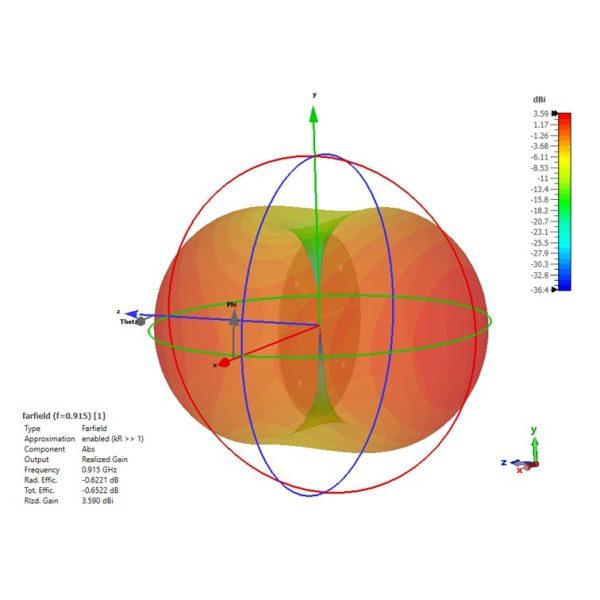

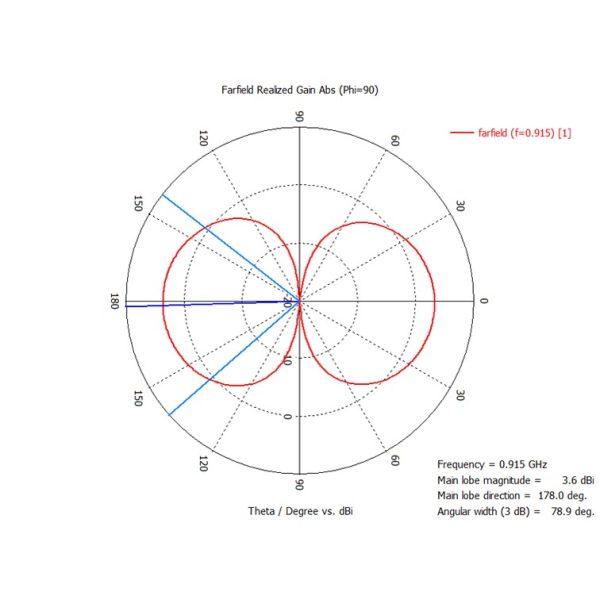

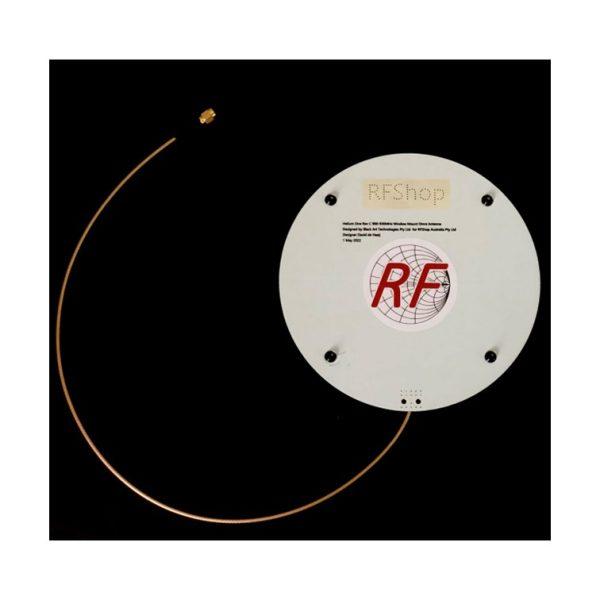

Description SUITABLE FOR AU915 / US915, AU923 and EU868 IoT FREQUENCY BANDS The RFShop Window-Mount IoT Omni Antenna is an indoor antenna specifically designed for IoT devices (hotspots / gateways or end-user devices ) where the opportunity to introduce a fixed external antenna is limited, such as high-rise apartments or rental properties. The antenna comes with four suction cup mounts, and is optimized to operated next to glass. The antenna is omni-directional, meaning it works in all directions but the best performance is to the front and rear of the antenna. Applications Helium Network Hotspots and devices IOT Devices LoraWAN Networks Features Simple window-mount installation RoHS Compliant 3.6dBi gain for better reach with minimal product placement complexity (stick to the window) 1m flexible RG316 coaxial cable terminated with RP SMA(M) or other custom connectors Model Number 868-928MHz Window-Mount IoT Omni Antenna Frequency Range 868-928MHz Gain 3.6 dBi VSWR <2:1 across the band. <1.5:1 in the US915 band Ground Plane Not applicable Color White Antenna Feeds One Connector Type RP SMA(M) on 1m RG316 pigtail Polarization Linear Vertical (Depending how it’s mounted) Impedance 50 Ohms Construction Single sheet Environmental Indoor Operation Temp -40 to 85 deg C Storage Temp -40 to 85 deg C Transport Temp -40 to 85 deg C IP Rating IP55 Wind Rating N/A Length 160 mm Width 160 mm Height 5 mm (max) Weight <100 g Included Hardware Suction Cups (already installed)
