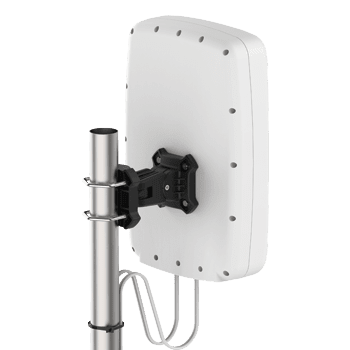

Description POYNTING introduces their all new XPOL-24 antenna and forms part of the new Lion Series. The XPOL-24 is an expansion of our very popular XPOL-2-5G antenna range. The antenna features 4×4 MIMO for 5G routers and futureproof implementation. The antenna applies our advanced meta-material technology, making use of Artificial Magnetic Conductors (AMC) to achieve exceptional bandwidth and gain. The XPOL-24 antenna covers the up-and-coming 5G bands, including the lower 617 to 960MHz and the upper 3400 to 4200MHz bands. The antenna performs exceptionally well in the following frequency bands: 617 to 960MHz, 1710 to 2700MHz & 3400 to 4200MHz. The antenna can achieve a peak gain of 11dBi across the wide band of operation, due to the implementation of the advanced meta-material technology. The XPOL-24 antenna also features 4×4 MIMO capability, adding to the exceptional performance of the antenna. The antenna elements are cross-polarised with vertical, horizontal and ±45° polarisations with spatial diversity for improved diversity and decorrelation. The frequency bands supported by the antenna are illustrated in the following graph. Read More… This is a 4 x 4 MIMO Antenna – 4 cables are needed, use our Custom Cable Builder Technical overview The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is their first ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna. The XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments. XPOL-24 Application Areas • Outdoor antenna for Fixed Wireless Access (FWA) • Consumer LTE/5G internet connectivity • Industrial & Commercial LTE/5G deployments • Urban and rural household reception enhancement • Agricultural & Farming LTE/5G data distribution • Power, Energy & Water telemetry access • Oil & Gas communication systems • Repeaters & coverage enhancement amplifiers XPOL-24 User Guide Datasheet Case Study- The new 4×4 MIMO Uni-Directional Antenna (XPOL-24)
