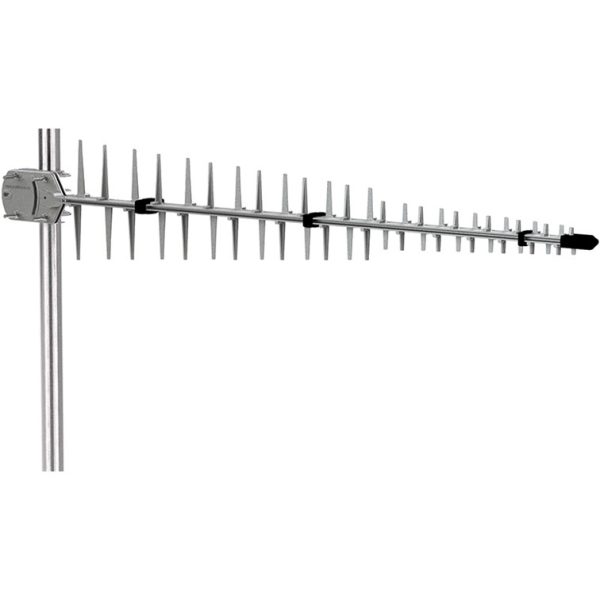

Ultra Wide Directional High Gain Antenna-692-3000MHz, 12dBi, 0.5m N(F)

Description One of the first solutions offered by POYNTING Antennas were the high-gain LPDA and YAGI antennas that were used by farmers in remote areas to get better cellphone reception. The Poynting LPDA-92 is still a firm favourite on remote farms and lodges worldwide. This high-gain, wideband, directional antenna covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands. It also covers the extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands. Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra-wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favourite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS). The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm and includes 0.5 meters cable terminated with N type female connector More information Antenna Datasheet Features: – Wide band frequency range – Excellent front-to-back ratio – Easy installation using supplied hardware Nominal Gain dBd 9 Frequency MHz 700 – 1000 / 1500 – 3000 Tunable Bandwidth Full band. VSWR <2.0:1 Polarisation Linear Vertical Beamwidth 50 (± 5) Horizontal Beamwidth 55 (± 5) Front/Back Ratio dB 20 dB (± 3 bB) Power W 10 Dimensions mm 1100 x 180 x 60 Length mm 1100 Weight (kg) 1.6 Termination 0.5 meters cable terminated with N type female connector Mounting Area Up to 60mm diameter pole
