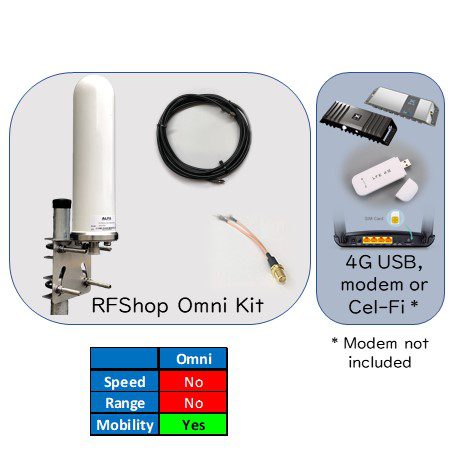

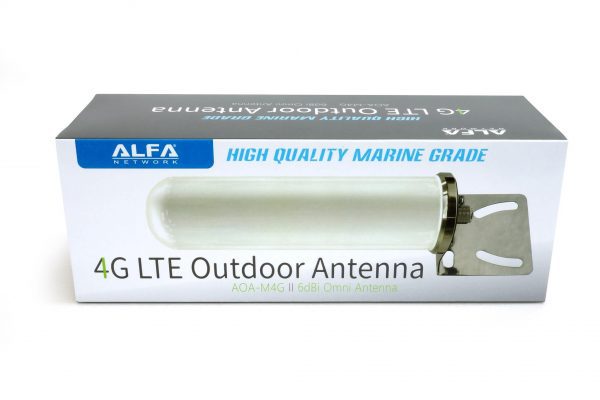

Description The ALFA 4G Omni Antenna is a versatile wideband antenna for use in a marine and all extreme outdoor environments. The Omni Antenna will operate from 600MHz up to 4.5GHz, making it an ideal Marine and Outdoor Antenna for any Network Operator across Australia and New Zealand. The antenna is also ideally suited for WiFi (2.4GHz) outdoor applications. With the antenna gain gradually increasing from 4-6 dBi gain across the frequency band, this antenna will provide the perfect solution for voice and data applications where premium grade and reliable 4G/5G omni antennas are required. This antenna has been tested and works in the 5G frequency range with great results! Features Suitable for all 3G/4G/4GX/5G and 2.4GHz across all mobile carriers and WiFi networks Comes with pole mount N Female connector Solid sealed construction built for the harsh marine environment Suitable for marine, caravans, motor homes, freight vehicles and fixed installations We also offer pre-made cables to go with the antenna N to SMA, N to N and N to TNC Electrical Specifications Frequency Range 600MHz to 4.5GHz| Input Impedance 50Ohm|Peak Gain? 4 / 6 dBi|VSWR 2.0:1| Polarisation Vertical linear| Mechanical Specifications Input Connector – N Female Radome Material – White fibreglass bottom stainless steel (no aluminium) Mounting – Pole / Mast Mount Dimensions – 25 cm x 5cm Weight 800g Rated Wind Velocity – 210 km/h Operating Temperature – -40C to 65C Network Compatibility Network Frequency Coverage Gain Telstra 4GX 700 MHz Yes 4 dBi Telstra Next ? G 850 MHz Yes 4 dBi Telstra 4G 1800 MHz Yes 6 dBi Telstra 3G (Metro) 2100 MHz Yes 6 dBi Telstra 4G (Metro) 2600 MHz Yes 6 dBi Optus 4G ?700 MHz Yes 4dBi Optus 3G 900 MHz Yes 6 dBi Optus 4G 1800 MHz Yes 6 dBi Optus 3G Metro 2100 MHz Yes 6dBi Optus 4G TDD 2300 MHz Yes 6dBi Optus 4G Metro 2600 MHz Yes 6dBi Vodafone 4G 850 MHz Yes 4 dBi Vodafone 3G 900 MHz Yes 4 dBi Vodafone 4G 1800 MHz Yes 4 dBi Vodafone 3G (Metro) 2100 MHz Yes 6 dBi Future 5G in Australia 3500 MHz Yes 6dBi
