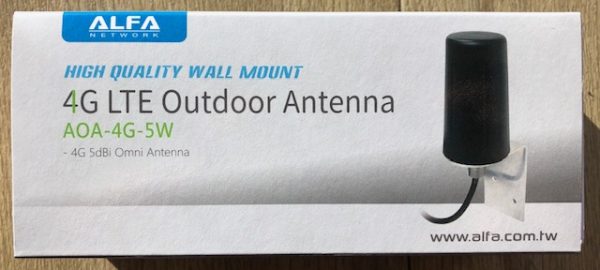

4G 5dBi OMNI Wall SMA Male

Description This Alfa Network compact M2M 4G Omni Antenna is designed for M2M and IoT applications. The AOA-4G-5W is a super compact antenna capable of operating on any network in Australia, making it suitable for M2M communications on Telstra, Optus, and Vodafone. With a height of only 82 mm, the antenna is also a fantastic option for low clearance vehicles, buses, and caravans. With a simple stud mount it can be a great internal antenna for the CelFi repeater system. In fact in multistory buildings or multi-level car parks it makes for an excellent external option where multiple antennas must be mounted on the building roof. Features 5dBi M2M 4G Omni Antenna 698-960MHz & 1710-2700 MHz Compact design without compromising on performance Bracket wall mount Low Loss 3m cable with SMA Male connector Antenna diameter 48mm and height 82mm Electrical Specifications Frequency Range 698-960 MHz / 1710-2170 MHz Impedance 50 Ω VSWR ≤ 2.00 Gain  4 – 5 dBi Max Input Power 50W   Mechanical Specifications Height 48mm W x 82 mm H Weight 220 g Operating Temperature -40°C to 70°C Connector SMA Male Material ABS Antenna Colour Black Network Specifications Network Bandwidth Coverage Gain Telstra 4GX 700MHz Yes 4 dBi Telstra 4GX 2600MHz Yes 4 dBi Optus 4G 700MHz Yes 4 dBi Telstra Next G 850MHz Yes 4 dBi Vodafone 4G 850MHz Yes 4 dBi Optus Regional 3G 900MHz Yes 4 dBi Optus 4G TDD 2300MHz Yes 4 dBi Vodafone Regional 3G 900MHz Yes 4 dBi Telstra/Voda/Optus 3G 2100MHz Yes 5.2 dBi Telstra/Voda/Optus 4G 1800MHz Yes 5.2 dBi
