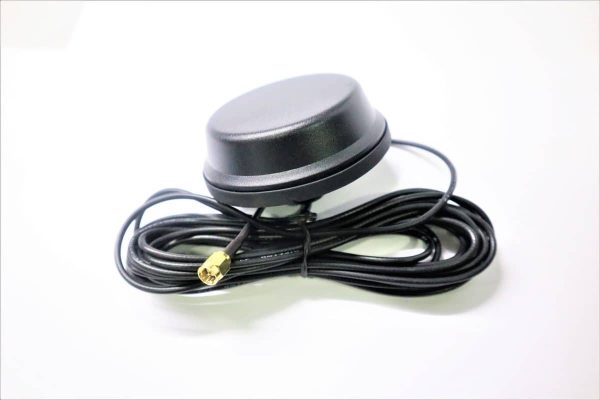

Roof Mount Active GPS Antenna

Description General Specification Colour: Black Coaxial Cable: RG174 Cable Connector: SMA Male Operating Temp: -30°C to 85°C Storage Temp: -40°C to 90°C Ceramic Path Specification Operating Frequency: T1 1757.42 /- 1.023 Mhz Output Impedance: 50 Ohms Polarisation: R.H.C.P. Bandwidth: 10 MHz min. @S11<=-10dB Gain at 10° elevation -1 dBic. Typ. Axial Radio: 3.0 dB Typ. LNA/Filter Specification Operating Frequency: T1 1575.42±1.023 MHz Gain: 28 dB Typ Noise Figure: 1.5 Typ. Filter: Dr Filter 20dB 30dB min @ fo±50MHz 30dB 35dB min @ fo±50MHz * fo=1575.42 MHz Output VSWR: 2.0 Max Voltage: 2.3 ~5.5V 2.5V: 6.6 mA Typical 3V: 8.6 mA Typical 4V: 12.6 mA Typical 5V: 16.6 mA Typical
