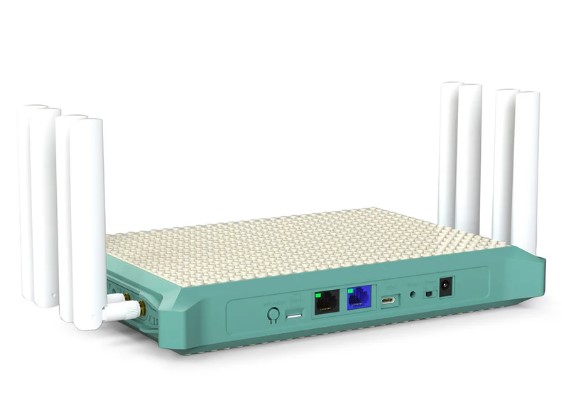

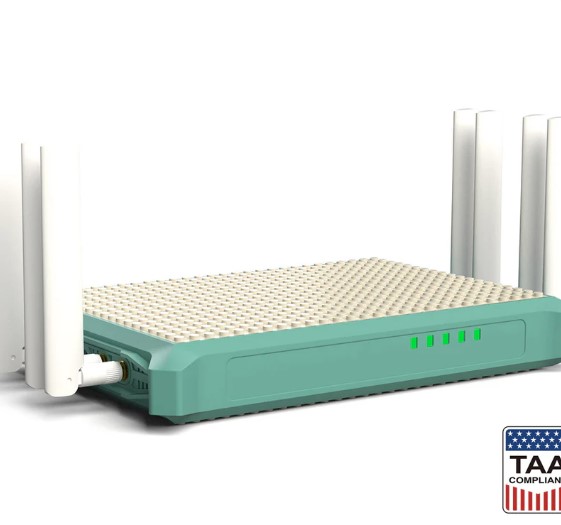

Description It supports the fastest internet speeds and unmatched efficiency. AX5GRM built-in Nano SIM slot and detachable antennas ensure flexible and customized coverage. With 2.5 Gbps PoE LAN and 1 Gbps WAN ports, it’s designed for the ultimate highspeed, reliable internet experience. Enhanced with 5G and fixed line failover functionality, it guarantees uninterrupted connectivity, automatically switching to maintain your online activities without a hitch. AX5GRM is for those who demand reliability and speed in every online interaction. Global 5G NR band Wi-Fi 6 data-rate 1800 Mbps Nano SIM slot Detachable 5G and Wi-Fi antenna 1x 2.5 Gbps PoE LAN 1x 1 Gbps WAN Compatible with major toy brick Specifications Hardware General Chipset MT6890 SoC: Arm Cortex-A55 2 GHz quad-core 5G NR Wi-Fi 6: MT7915 MT7975 Flash 32 Gb eMMC RAM 8 Gb DDR4 Antenna Connector 4x SMA for 5GNR 4x RP-SMA for Wi-Fi 6 Antenna Gain 5G NR: 617 – 960 MHz: 2 dBi 1427 – 2690 MHz: 5 dBi 3300 – 5850 MHz: 4 dBi WiFi: 2.4 GHz: 4 dBi 5 GHz: 4 dBi Interface 1x Nano SIM slot 1x 2.5 Gbps RJ45 PoE In (Blue) 1x 1 Gbps RJ45 (Black) 1x DC jack (Ø2.1 x Ø5.5) 1x Power on/off switch 1x WPS button 1x Reset button LED 2x RGBW LED 3x Blue LED Input Voltage DC: 12V, 2A PoE: IEEE 802.3at PD 25.5 W Power Consumption Max. 24 W Dimensions 262 x 190 x 42 mm (10.3 x 7.5 x 1.7 inch) Operating Temperature -20° C ~ 60° C ( -4° F ~ 140° F ) Operating Humidity 10% ~ 90% (non-Condensing) ESD Refers to IEC 61000-4-2 criterion A Air Electrostatic Discharge: ± 8KV Contact Electrostatic Discharge: ± 4KV Surge Refers to IEC 61000-4-5 criterion A Common mode surge immunity: ± 6KV Differential mode surge immunity: ± 6KV 5G/4G Standard 5G NR Supports most main features in 3GPP Release 15 3GPP EN-DC option 3/3A/3X 3GPP SA option 2 Support downlink/uplink 256 QAM Support downlink 4×4 MIMO and uplink 2×2 MIMO 5G NR Bands N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/ n41/n66/n71/ n77/n78/n79 LTE-FDD Bands B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66 LTE-TDD Bands B34/B38/B39/B40/B41/B42/B46/B48 WCDMA B1/B2/B4/B5/B6/B11 GNSS GPS/Glonass/Beidou/Galileo Data Rate Peak download speed: 4.09 Gbps Peak upload speed: 978 Mbps Wi-Fi Standard Standard IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6) Frequency 2401 – 2483 MHz 5150 – 5835 MHz Data Rate 2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps TX Power 2.4 GHz: 21 dBm 5GHz: 21 dBm RX Sensitivity 2.4 GHz: -96 dBm 5 GHz: -80 dBm Security WEP, WPA, WPA2, WPA3 Advanced Feature MU-MIMO, Beamforming, OFDMA
