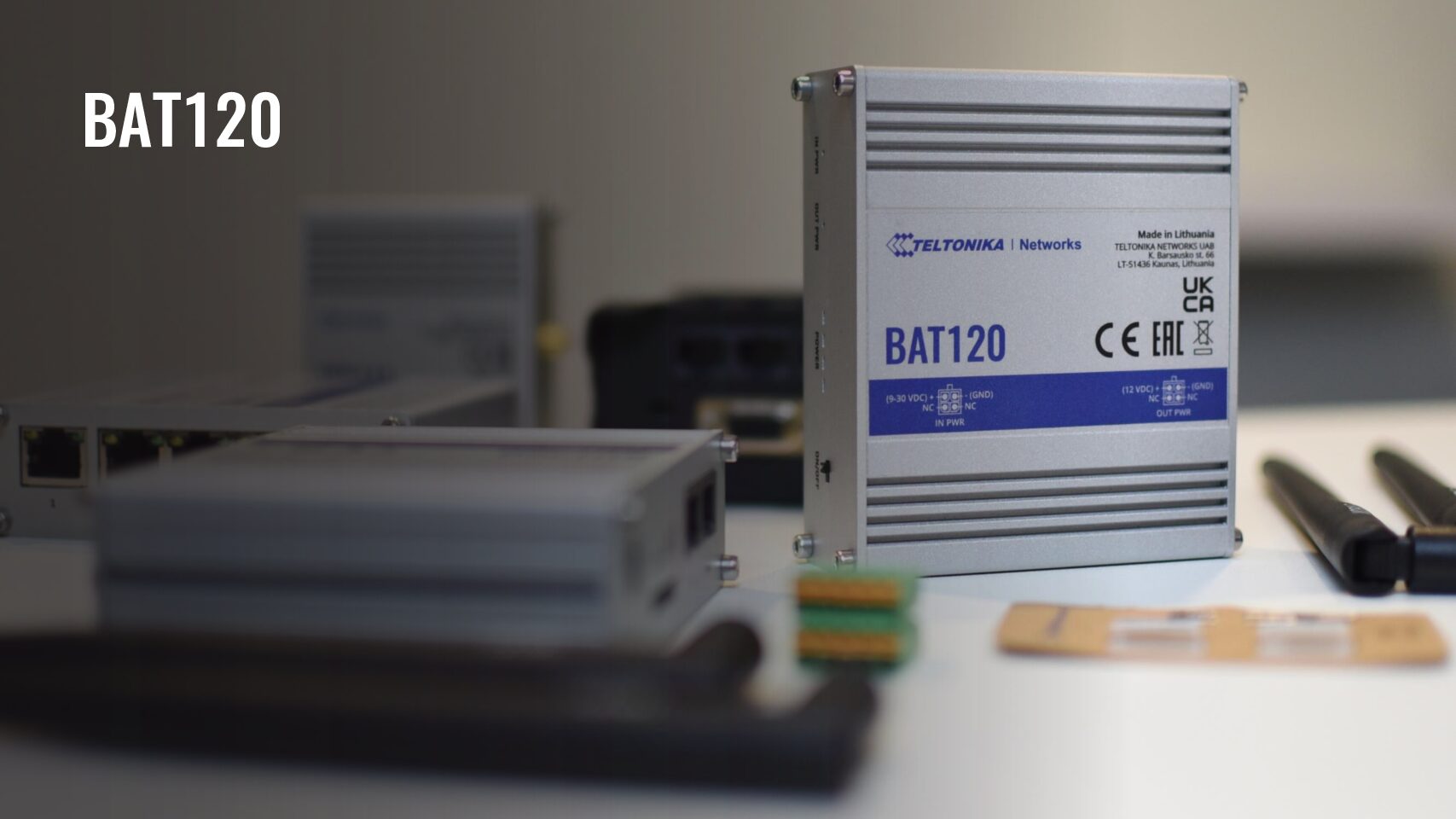

Description BAT120 is the first uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery. Acting as an uninterrupted power source, BAT120 provides enough power from two 18650 Li-Io cells to keep a compatible Teltonika Networks device working for up to 6 hours. BAT120 has reverse and overvoltage protection for input and 3A overcurrent protection for output as safety features. This rugged and reliable uninterrupted power source is perfect for applications that require constant connectivity from their Teltonika Networks devices even when power outages or fluctuations occur. More Here Features Connector 4-pin industrial DC power socket Input power/max charging current Charger: max 4 W / 300 mA (max battery charging current) Input voltage range 9 – 30 VDC Input protection Reverse polarity protection, Overvoltage protection Output voltage in passthrough mode 9 – 30 VDC Output voltage in battery mode 12 VDC Output protection 3 A overcurrent protection Max output power/current in battery mode 22 W / 1.8 A Battery capacity 2300 mAh 17 Wh Power IN 1x 4-pin DC connector Power OUT 1x 4-pin DC connector Status LEDs 1x IN PWR LED, 1x OUT PWR LED, 4x Power status LEDs Switch On/Off slider switch ALARM OUTPUT Alarm Output 1x Active HIGH output, max output 12 V, 2.5 mA GENERAL CHARACTERISTICS Lithium cells 2x 18650 Li-Ion cells Compatible devices RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100 PHYSICAL SPECIFICATION Casing material Aluminum housing Dimensions 100 x 30 x 85 mm Weight 315g Mounting options DIN Rail, flat surface placement OPERATING ENVIRONMENT Operating temperature 0 °C ~ 45 °C REGULATORY & TYPE APPROVALS Regulatory CE/RED, UKCA, EAC
