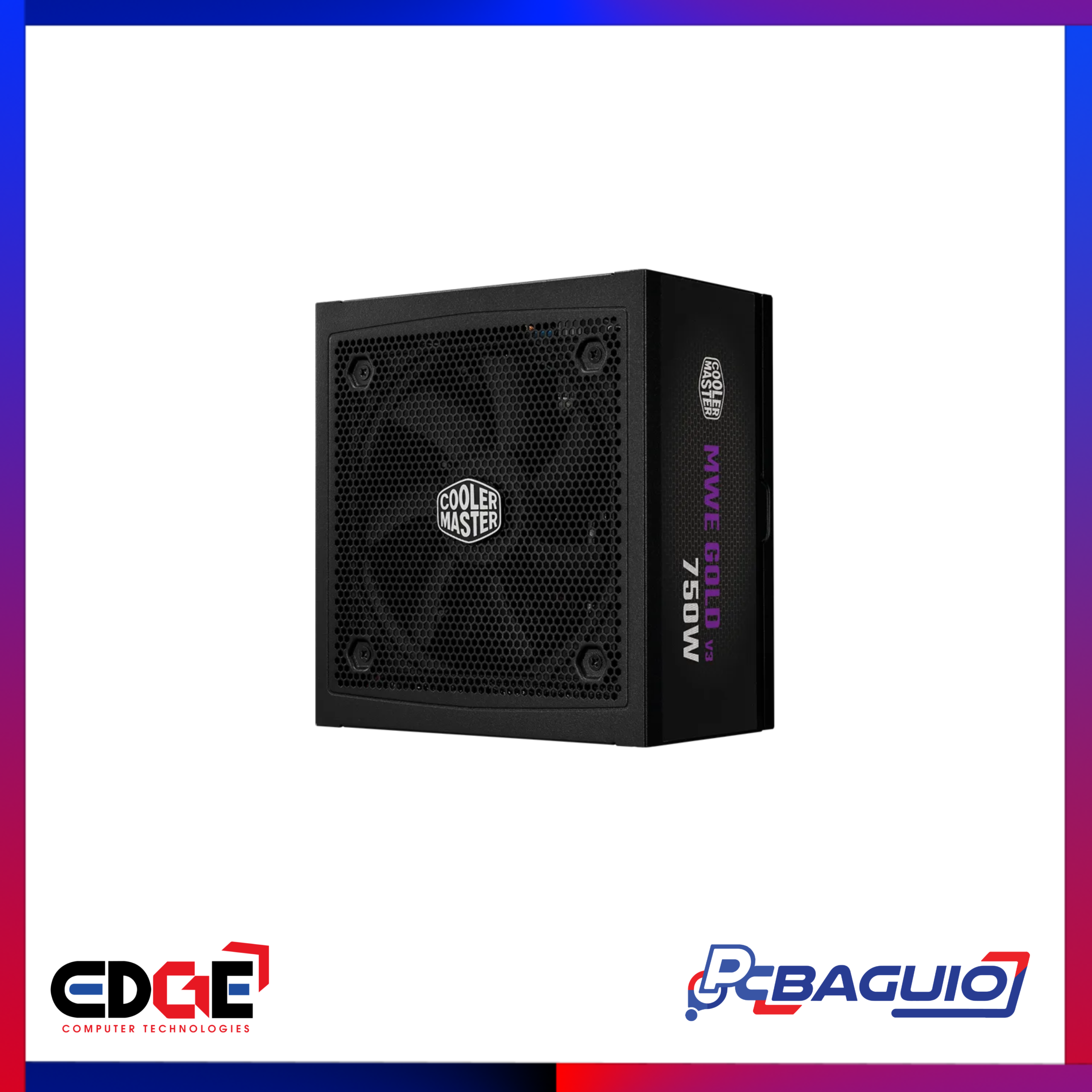

750W COOLERMASTER MWE Gold 750 V3 MPX-7503-AFAG-2EBUS, 80 Gold, Fully Modular

Description SPECIFICATIONS Model MPX-7503-AFAG-2EBUS ATX Version ATX 12V Ver. 3.1 PFC Active PFC Input Voltage 100-240V Input Current 10-5A Input Frequency 50-60Hz Dimensions (L x W x H) 160 x 150 x 86 mm Fan Size 120mm Fan Bearing HDB Fan Speed 2500 RPM Efficiency ≥90% @ Typical Load 80 PLUS Rating 80 PLUS Gold ErP 2014 Lot 3 Yes Operating Temperature 0-40°C Power Good Signal 100 – 150 ms Hold Up Time ≥16ms at 80% Load MTBF >100,000 Hours Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region’s requests.) Connections 1x ATX 24 Pin Connectors 1x EPS 4 4 Pin Connectors 1x EPS 8 Pin Connector 6x SATA Connectors 2x Peripheral 4 Pin Connectors 4x PCI-e 6 2 Pin Connectors 1x 12V-2×6 Connectors Series MWE Gold Series Category Above 750W Modular Fully Modular 80 Plus Efficiency Gold Form Factor ATX Watts 750W
