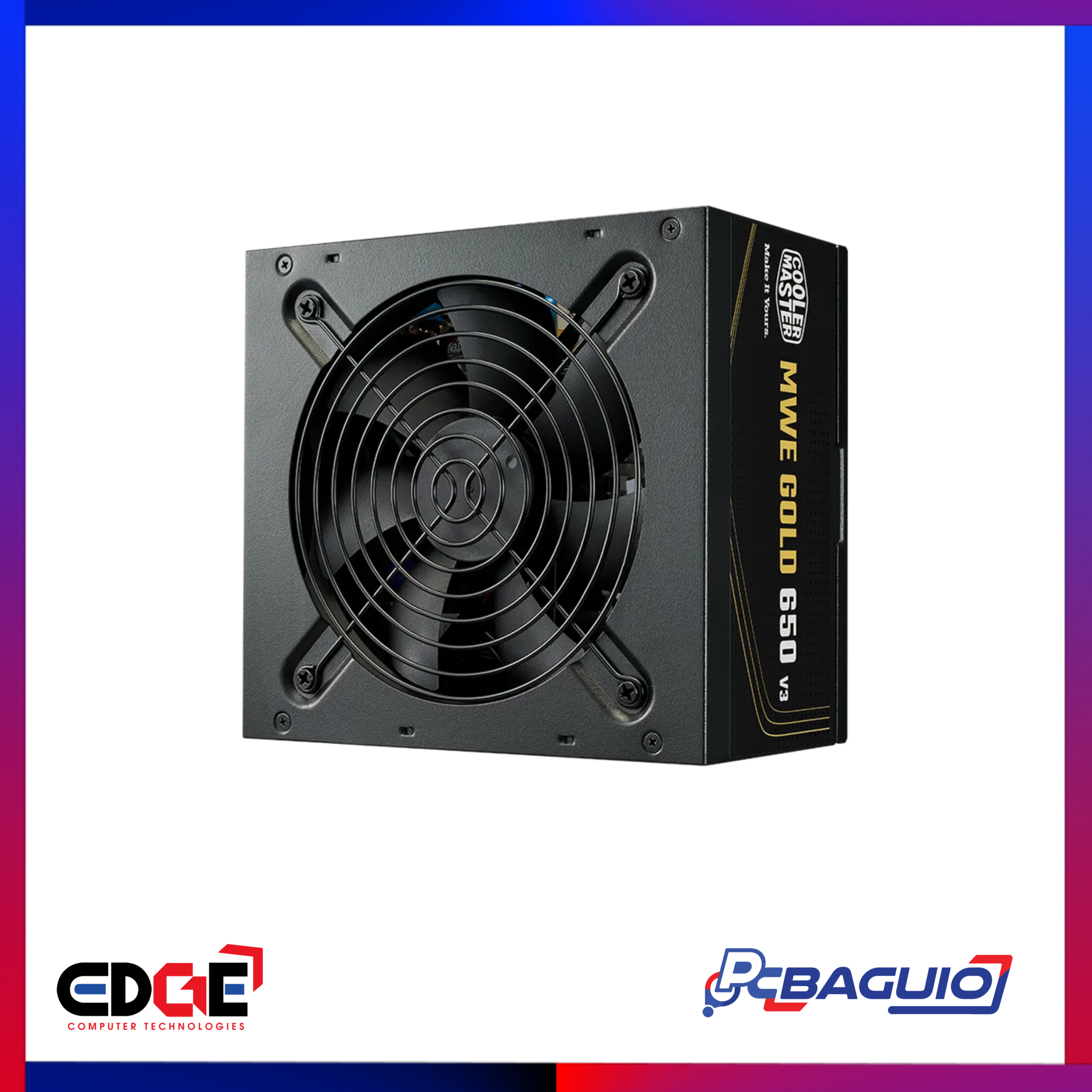

Description SPECIFICATIONS Model MPX-6501-AFAAGV-2EBUS ATX Version ATX 12V Ver. 3.1 PFC Active PFC Input Voltage 100-240V Input Current 10-5A Input Frequency 50-60Hz Dimensions (L x W x H) 140 x 150 x 86 mm Fan Size 120mm Fan Bearing HDB Fan Speed 2500 RPM Efficiency ≥90% @ Typical Load 80 PLUS Rating 80 PLUS Gold ErP 2014 Lot 3 Yes Operating Temperature 0-40°C Power Good Signal 100-150 ms Hold Up Time ≥16ms at 80% Load MTBF >100,000 Hours Protections OPP / OVP / OTP / OCP / SCP / UVP / Surge & Inrush Protection Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Region Dependent) Connections 1x ATX 24-Pin Connector 1x EPS 4 4 Pin Connector 1x EPS 8 Pin Connector 6x SATA Connectors 2x Peripheral 4-Pin Connectors 4x PCI-e 6 2 Pin Connectors Series MWE Gold Series Category Above 650W Modular Non-Modular 80 Plus Efficiency Gold Form Factor ATX Watts 650W
