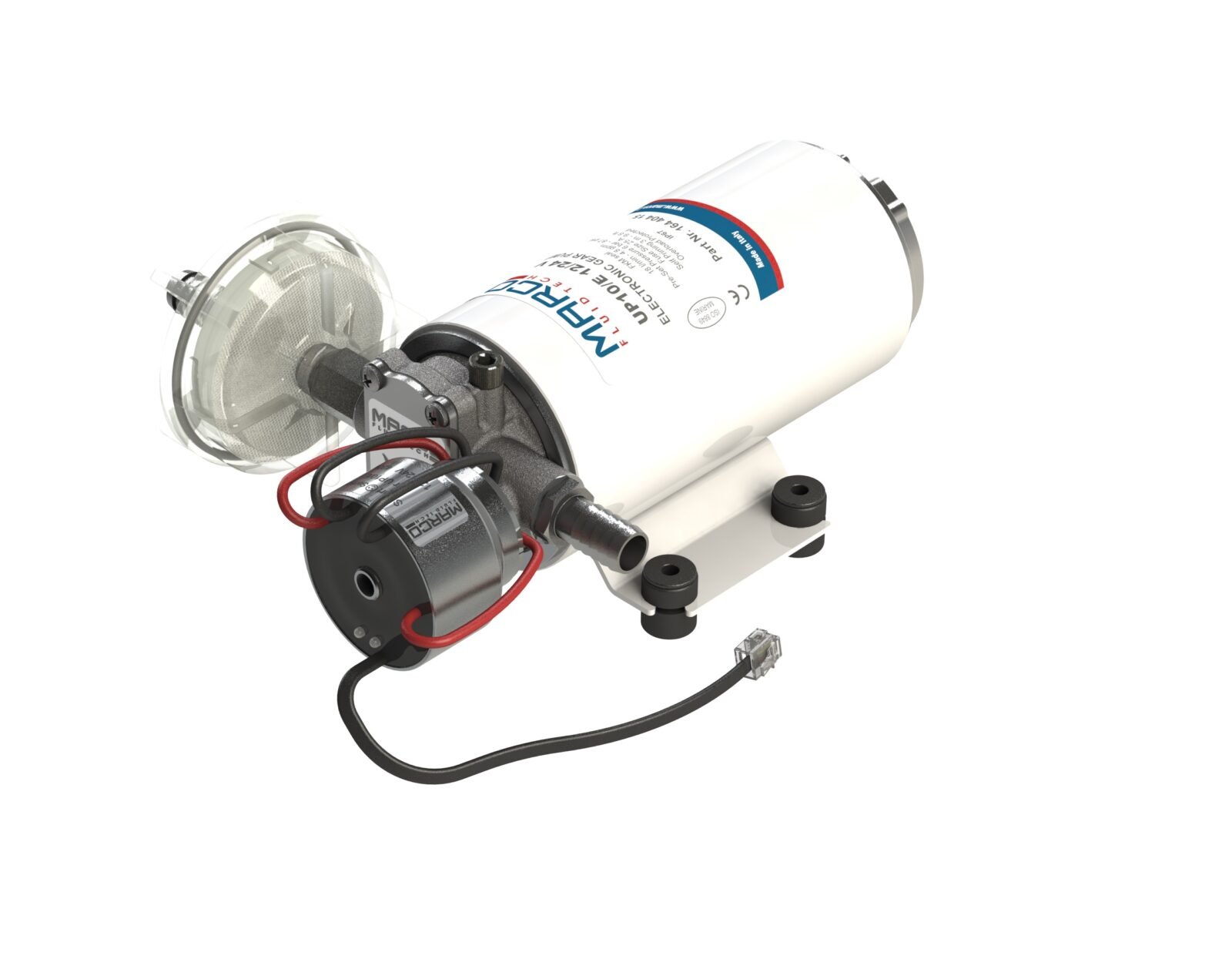

Description Marco UP10/E Gear Water Pump with Electronic Brain – 26 Litres per Minute The Marco UP10/E Gear Pump with Electronic Brain is a high performing and reliable water pressure system. The heavy-duty construction of this self-priming electric pump ensures versatility of application because of universal voltage compatibility and sophisticated electronic controls. It truly applies to a wide variety of installations, from those that require efficient water flow to those that require dependable performance. Stainless Steel Shaft: Non-corrosive, durable, no manual priming. Dual Voltage: Operates on 12V and 24V. High Flow Rate: Up to 26 litres/min, 2.5 bar pressure. Durable Construction: Nickel-plated brass body, stainless steel shaft. ● PTFE & PEEK Gears: Constant pressure, low noise, chemical resistance. ● Versatile Ports: 1/2″ and 3/8″ BSP connections. Temperature & Suction: Handles fluids up to 40°C, 3m lift. Electronic Control: Smart pressure and voltage management. Smooth Operation: Slow ramp-up reduces wear and noise. No Accumulator Needed: Simplifies system setup. Protective Features: Built-in short circuit and overload protection. Diagnostic Functions: Real-time monitoring with blue LED warnings. Key Features: Non-Priming Stainless Steel Shaft: Non-corrosive and resistant to mechanical damage; easy to install; no manual priming required; reliable operation. Dual Voltage Capability: Operates both on 12V and 24V, making it suitable for a wide range of setups. High Flow Rate and Pressure: Maximum flow rate up to 26 litres/minute; maximum pressure up to 2.5 bar is ideal for demanding applications in the industrial, domestic, and farming sectors. Durable Construction: Made from a nickel-plated brass body and a stainless steel shaft, it is excellent in resisting wear and tear, chemicals, and corrosion. Advanced PTFE and PEEK Gears: The helicoidal PEEK gears and PTFE material provide for constant pressure, low noise levels, and resistance to chemicals, extending pump life and further improving efficiency. Versatile Ports: Equipped with 1/2″ female BSP ports with hose tails and 3/8″ BSP female ports, including two 13mm brass hose barbs for easy connection to various systems. Temperature and Suction Capacity: The ability to work with fluids up to 40°C and with a maximum suction lift of 3 metres. Innovative Electronic Control System: Smart Pressure and Voltage Management: Integrated electronic brain constantly monitors pressure, current, and voltage and automatically adjusts motor speed according to demand. Smooth Operation and Reduced Wear: The motor ramps up slowly to the required flow rate. These minimise noise, current draw, and mechanical wear. No Accumulator Tank Required: System design eliminates the need for an accumulator tank, simplifying setup and maintenance. Protective features: Short circuits and overloads are protected by the pump, making it not require a fuse. This ensures all of these are guaranteed in safety and reliability. Diagnostic and Monitoring Functions: Real-time monitoring by a blue LED indicates warnings for an empty tank. An electronic system attempts to restart the motor up to a maximum of four times in case of a stall to keep operations running. Applications and Benefits: The Marco UP10/E Gear Pump will perform admirably in many fields of applications: marine, automotive, and industrial systems-wherever reliable water pressure and flow are of great importance. Its solid construction and sophisticated electronic control have targeted this as a number one product for professionals and amateurs alike.
