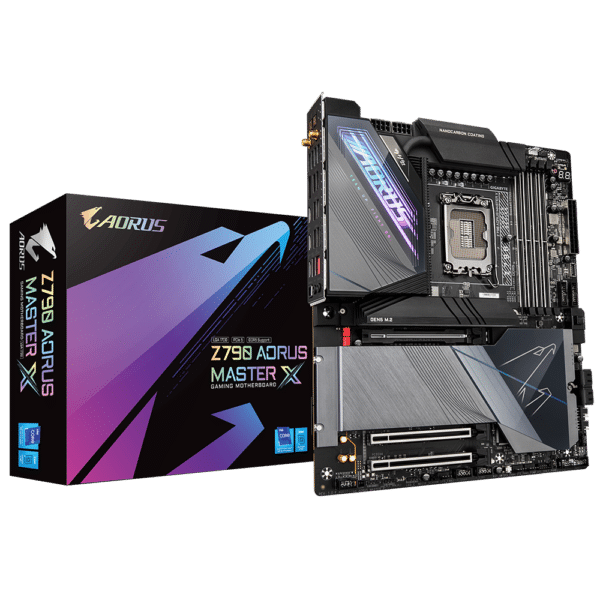

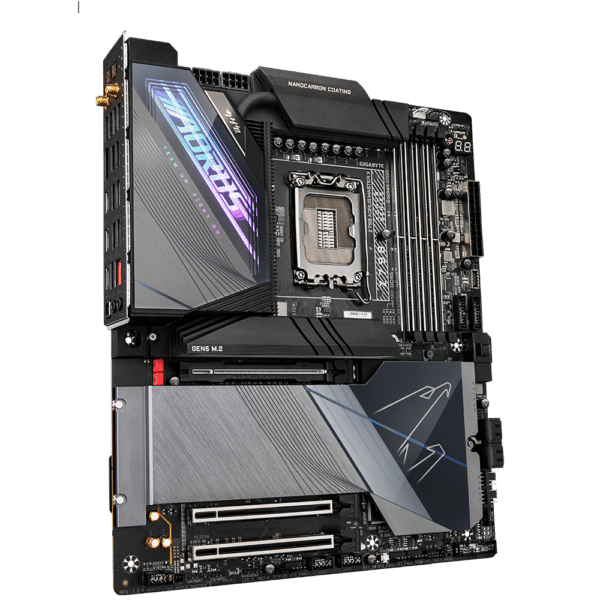

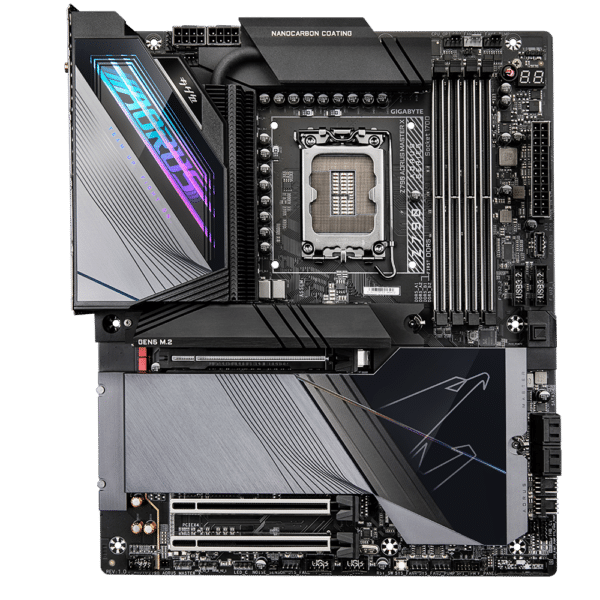

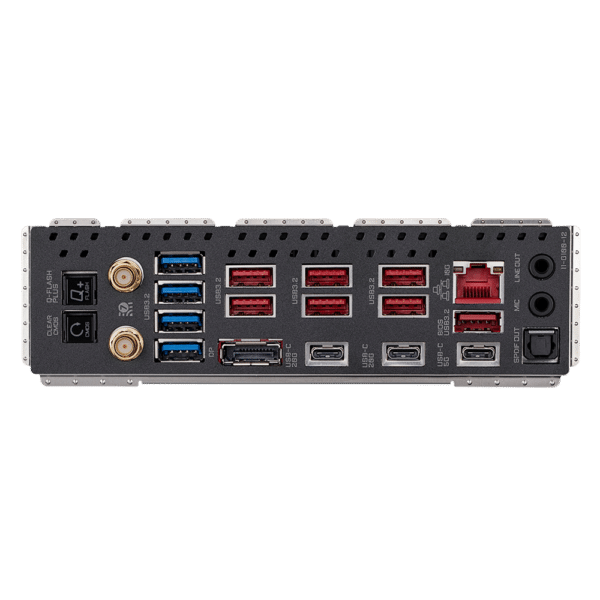

GIGABYTE AORUS Z790 MASTER X DDR5 WIFI-7 E-ATX Motherboard - Black

Gen Designed for 14th Gen X marks the 14th generation! Introducing the AORUS Z790 X Gen Motherboards, the most powerful platforms ever built for the Intel® Core™ 14th Gen processors. With the leading performance in DDR5 memory, the upgraded DIY-friendly innovations, and the all-new BIOS redesigned as user-centered, the AORUS Z790 X Gen Motherboards are built to fully unleash the next-gen power. 20 1 2 Direct Digital VRM Design 8-Layer PCB Low Loss PCB 2X Copper PCB Premium Choke and Capacitor *Power stage maximum current capacity is based on VCORE Phase. Intel Core™ 14th Processors Support UD Power Connector 24 pin ATX with UD Solid Pin 8 8 pin CPU with UD Solid Pin Stainless-steel shielding design 4 x DIMMs, Dual Channel DDR5 with Memory UD Slot 5 x M.2 Slots 1 x Gen 5 M.2 UD Slot 4 x Gen 4 M.2 Slots Full-length PCIe slots 1 x PCIe 5.0 x16 with PCIe UD Slot X 2 x PCIe 4.0 x16 with PCIe UD Slot Memory Xceed in DDR5 performance GIGABYTE is committed to enabling the unparalleled performance of the Intel® Core™ 14th Gen processors. That is why every Z790 AORUS MASTER X motherboard is engineered with industry-leading technologies to achieve the best-in-class DDR5 performance on the market. Best-in-class Compatibility DDR5 Overclocking Up to 8266 MT/s QVL List *Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model. BIOS Engineering Feature-rich BIOS functions that enable easy access to the best-in-class DDR5 performance. DDR5 XMP Booster one click to auto boost your DDR5 module by the highest profile DDR5 Auto Booster one click to boost native DDR5-5600 to 6000 High Bandwidth one click to increase DDR5 bandwidth Low Latency one click to shorten DDR5 latency XMP 3.0 User Profile optimizes memory settings and achieve the best performance for the system Learn more about BIOS optimizations Hardware Craftsmanship Maximize DDR5 performance with our advanced technology for an unparalleled gaming experience. Shielded Memory Routing Isolated Memory Routing 8-layer Server-grade PCB Back Drilling Technology Revolutionary DDR5 Technology  Robust VRM Design Xtraordinary power delivery The Z790 AORUS MASTER X motherboard is equipped with the all-digital power design to achieve peak performance of the next-gen processor while providing the best stability under heavy workloads. Digital Direct VRM Design Ensures stable high-power delivery for advanced overclocking. Learn more 20 VCORE Phases 105A SPS to unleash full potential of multi-cores CPU performance 1 VCCGT Phase 105A SPS for CPU integrated GPU performance 2 VCCAUX Phases provide stable power for CPU integrated PCIe & Memory controller Efficient Overall Thermal Xpress your cool Every Z790 AORUS MASTER X motherboard is armored with the most advanced, full metal thermal design. These solid heatsinks are forged to keep your system cool while running fast. VRM Thermal Armor Fins-Array These solid heatsinks are forged to keep your system cool. 10x more surface area 10% lower temperature M.2 Thermal Guard XL with M.2 Thermal Guard Backplate * Test results are for reference only and may vary in different circumstances. 9x optimized heat dissipation Small Vents, Big Cooling Power * Test results are for reference only and may vary in different circumstances. Up To 7°C lower temperature M.2 Thermal Guard Ext. with M.2 Thermal Guard Backplate 4x M.2 slots coverage Smart Fan6 Cool. Quiet. Customized. DIY-friendly Innovations Xpeditious building process Building your own PC is meant to be joyful and effortless. Now we introduce a variety of innovations to make the Z790 AORUS MASTER X motherboard the most DIY-friendly ever. EZ-Latch Designs Effortless mechanisms that enable easy installations of components. *For reference only; actual appearance may vary. M.2 EZ-Latch Click screwless installation for M.2 heatsink. M.2 EZ-Latch Plus screwless installation for M.2 SSDs PCIe EZ-Latch Plus screwless installation for PCIe SSDs Quick Control Elements Reset, Update, Innovate Multi-key Q-FLASH PLUS PCB Crafting Xtra layers for excellent players As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers. 8-Layer PCB Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems. 2X Copper Enhancement Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support. 56% Lower Dissipation Factor Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design. Ultra Durable™ Xpect everything UD GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. The Z790 AORUS MASTER X motherboard is built to last longer and stand stronger. PCIe UD Slot X The latest PCIe UD Slot X offers unprecedented strength, providing enhanced protection for your graphics card. 10X load-bearing capacity seamless, one-piece design and screwed onto a dedicated backplate Inner Lining Rubber Strip protects your graphics card’s PCB from potential scratches Zinc Alloy provides effective electromagnetic shielding for high-speed signals Memory UD Slot D5 The one-piece, stainless-steel shielding design reinforces the Memory Slots, and maximizies signal integrity and overclocking potential. 1.3x increase in anti-plate bending 5000 Times plug and unplug operations Reduced Signal Degradation with SMD Technology M.2 UD Slot PG5 The one-piece, stainless-steel shielding design reinforces the M.2 Slots, and maximizies signal integrity. 1.3x stronger in X-axis strength test 1.5x stronger in Y-axis strength test Reduced Signal Degradation with SMD Technology UD Nanocarbon Backplate Experience the ultimate in support, protection, and heat dissipation with the UD Backplate. 3X Higher Thermal Conductivity with the backplate made of Aluminum 10% Temperature Reduction from the nanocarbon coating UD Power Connector The unique design provides better conductivity for power and better dissipation for the heat generated from it. Solid-pin provides superior conductivity & signal transmission, reducing metal loss from repeated plugging Stainless-steel Shielding Design provides the ultimate protection and heat dissipation Connectivity Xtensively versatile The Z790 AORUS MASTER X motherboard offers a wide range of versatilities from the cutting-edge Wi-Fi 7 support with a redesigned antenna, to an array of USB ports. Seamless Connectivity Wi-Fi 7 Ultra-high Gain Antenna 10GbE LAN Dominate Game with Superior Sound True High- Fidelity Music Audiophile Grade Capacitors Intuitive Customization Xplore infinite utilities The Z790 AORUS MASTER X motherboard is the embodiment of our relentless pursuit of BIOS optimization. And thanks to our new partnership from the community, we now make the next-gen performance more accessible in even more intuitive ways. UC BIOS Redesigned as user-centered and provides intuitive performance tweakers. Redesigned UI and UX an intuitive operation interface with an aesthetically pleasing design Quick Access 9 customizable option slots for effortless access in Easy Mode PerfDrive exclusive BIOS settings that optimize the performance based on the cooling configuration HWiNFO Exclusive Partnership introduces innovative features for computer enthusiasts and professionals GIGABYTE Control Center A unified software platform across a variety of GIGABYTE products. RGB Fusion customize the RGB lighting on the motherboard or devices that connect to it. Z790 AORUS MASTER X CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. Chipset Intel® Z790 Express Chipset Memory Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Audio Realtek® ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out LAN Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard Intel® Wi-Fi 7 BE200 (PCB rev. 1.2) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations. Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices USB Chipset: - 3 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (2 ports on the back panel, 1 port available through the internal USB header) Chipset 2 USB 3.2 Gen 2 Hubs: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 7 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset 2 USB 3.2 Gen 1 Hubs: - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points Back Panel Connectors 1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C® port, with USB 3.2 Gen 1 support 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Form Factor E-ATX Form Factor; 30.5cm x 26.0cm
