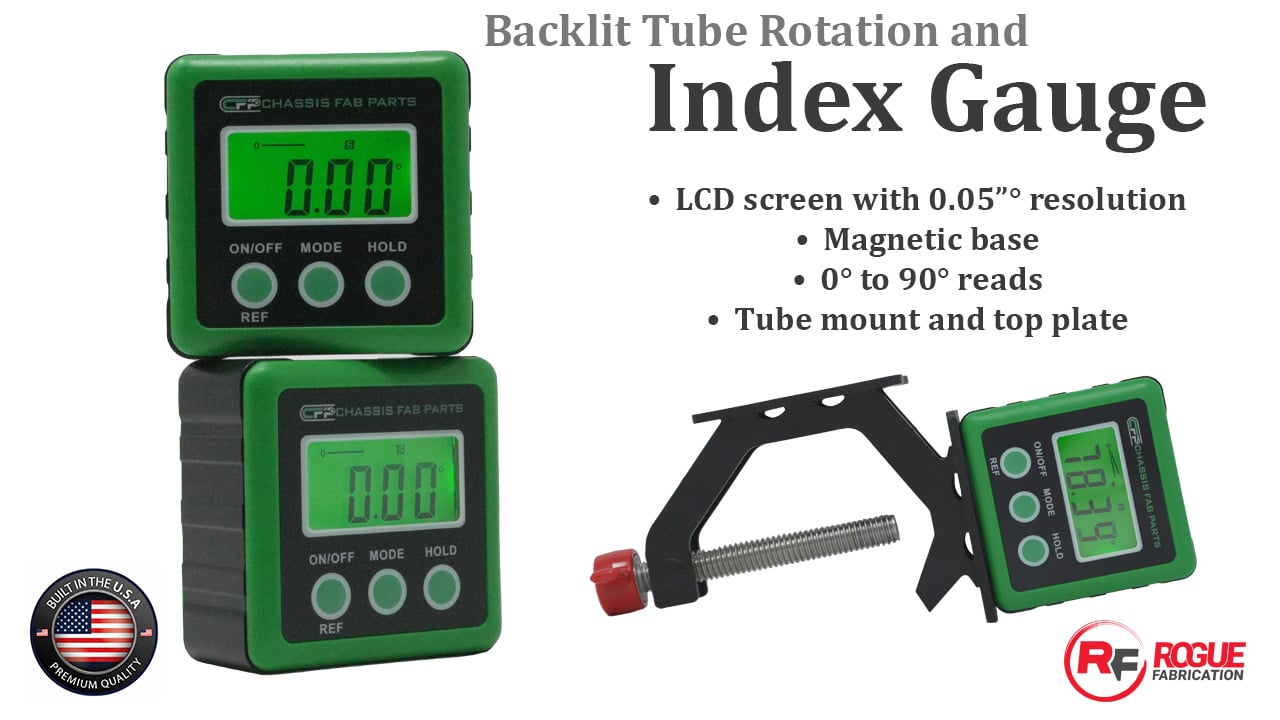

Tube Rotation/Index Gauges

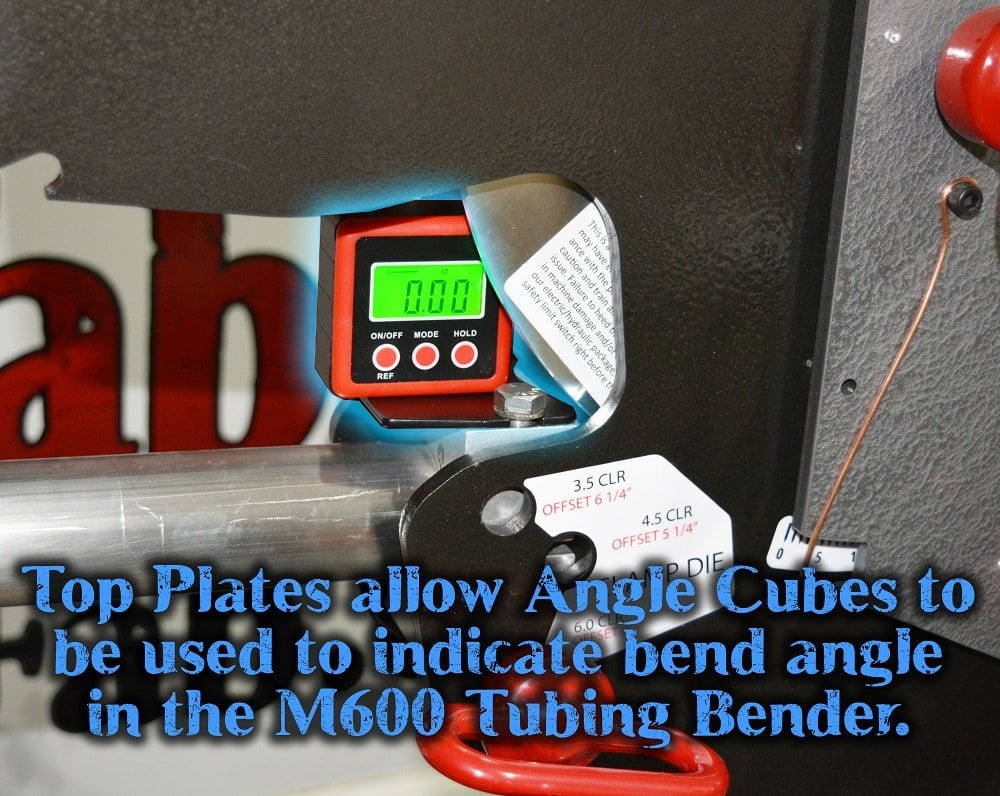

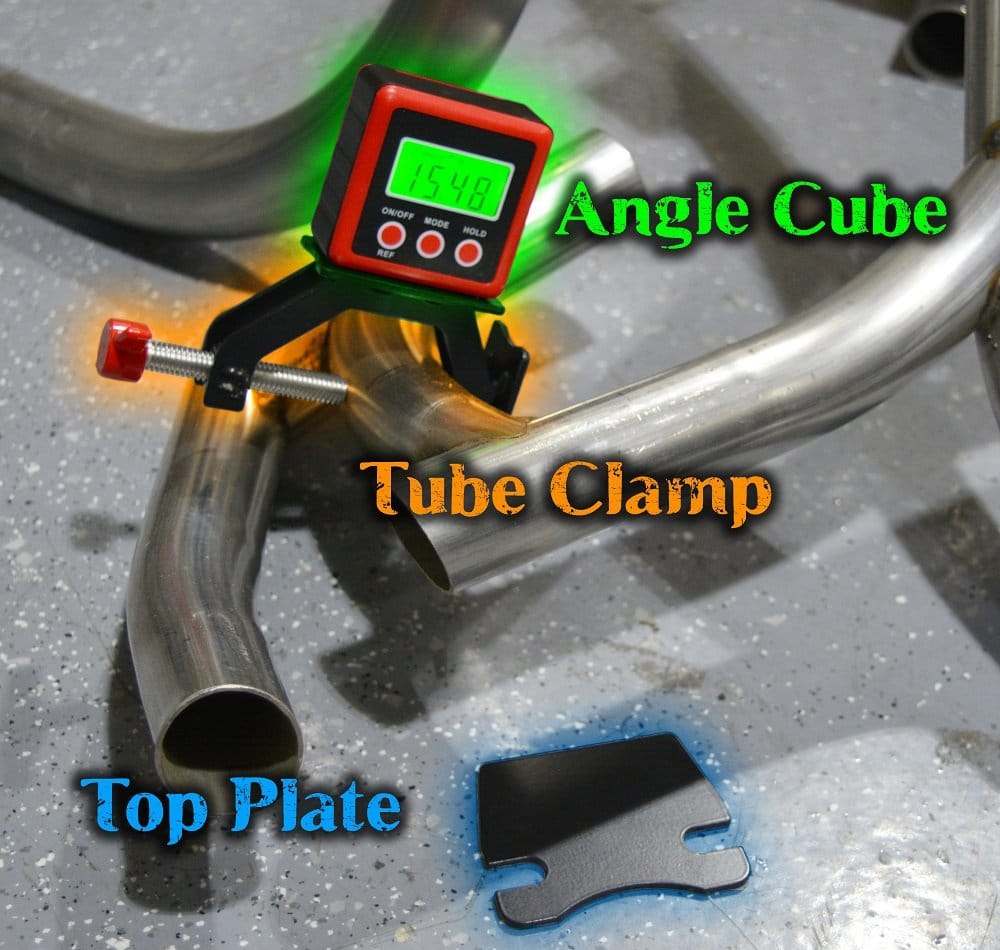

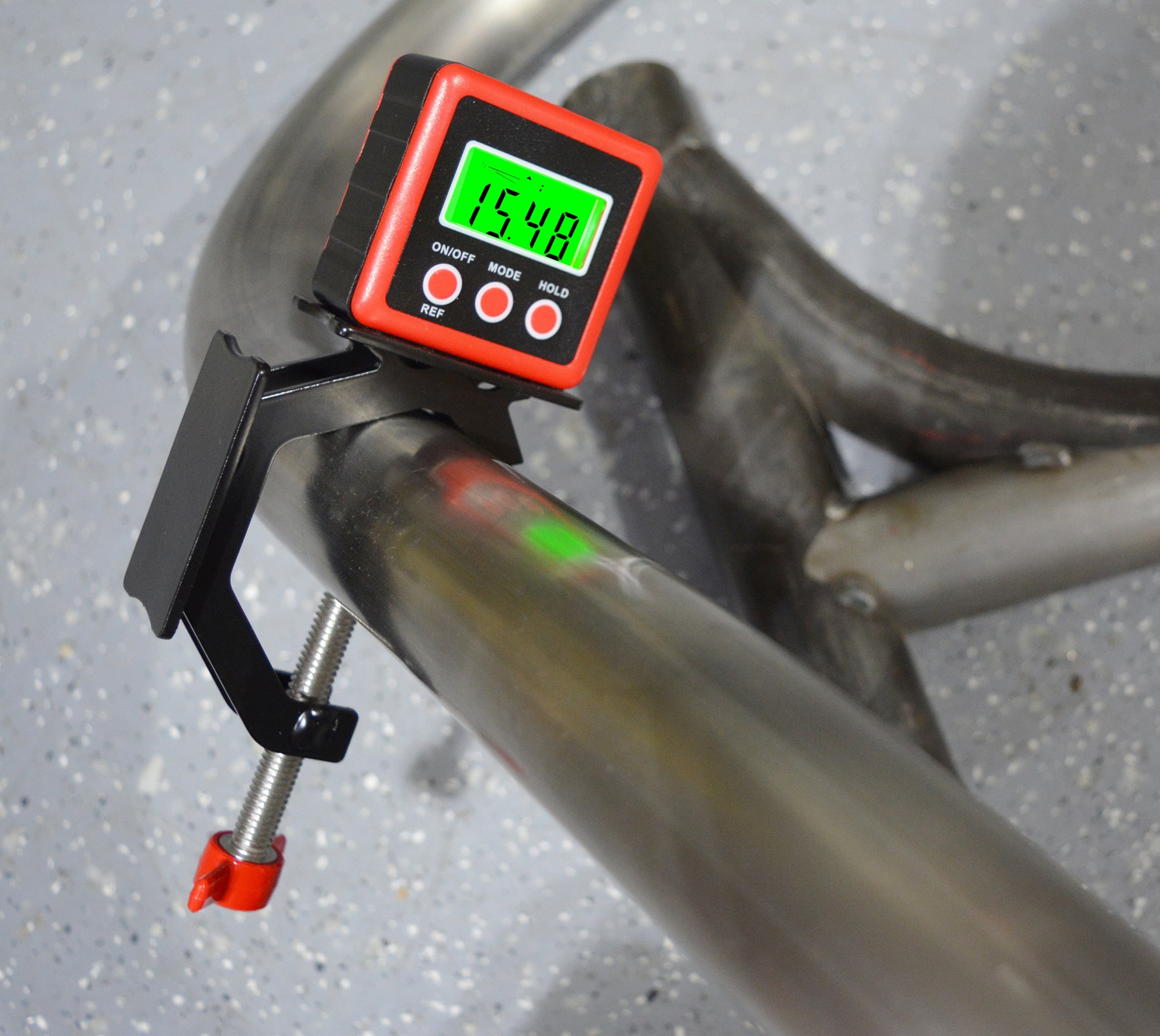

Description     These tools are fantastic for making complex tubework accurately and easily! Now if you can think it, you can bend it! And if you use Bend Tech software, “tube rotation between bends” is one of the outputs, which you now have a gauge for! The cube can read in degrees (down to .05 degrees resolution), and also in % incline and inches/ft. When you have two bends in a part and they aren’t in the same plane (3D), this is how you accurately put them at 30 degrees apart. Angle Cube – Backlit LCD screen, resolution of 0.05 degrees. Magnetic base. Can be set to zero at any angle. Reads angle from zero to 90 degrees and then starts over again at zero (so a 110 degree bend will read 20… it’s quick to get used to). Imported. runs on 2 AAA batteries, sold separately. Includes small soft case to protect it when not in use. These are imported. Tube Mount – These clamps are ergonomic, compact, and rigid. This slip-on tube clamp can be slid onto tubing up to 2.375″ OD and provides 2 surfaces 90 degrees apart to set the magnetic angle cube.  This clamp is fast to set, and clamps very well on bends if needed. Made in the USA here at our shop! Ships powder coated. Top Plate – This simple laser cut plate allows the angle cube to be placed on a standard RogueFab clamp block in either orientation (to read bend angle or tube rotation). This can be a handy backup to the analog gauge on the machine for bend angle, and it can also be used just like the clamp mount in this kit to indicate tube rotation. Aluminum clamp block sold separately (see our tube bender dies area ). Made in the USA. Ships powder-coated. Why would I want this: If you make or plan to make 3D parts. Or if you want to be able to accurately produce parts from Bend Tech EZ3D or PRO or SE software. Or if you want an easy reliable way to make sure all your bends are in the same plane. Why wouldn’t I want this: If you only make simple 2D parts from bent tubing, and you don’t care how close to being in-plane all the bends are, these tools won’t be of much use to you.
